A 550·A1520-15CAMO

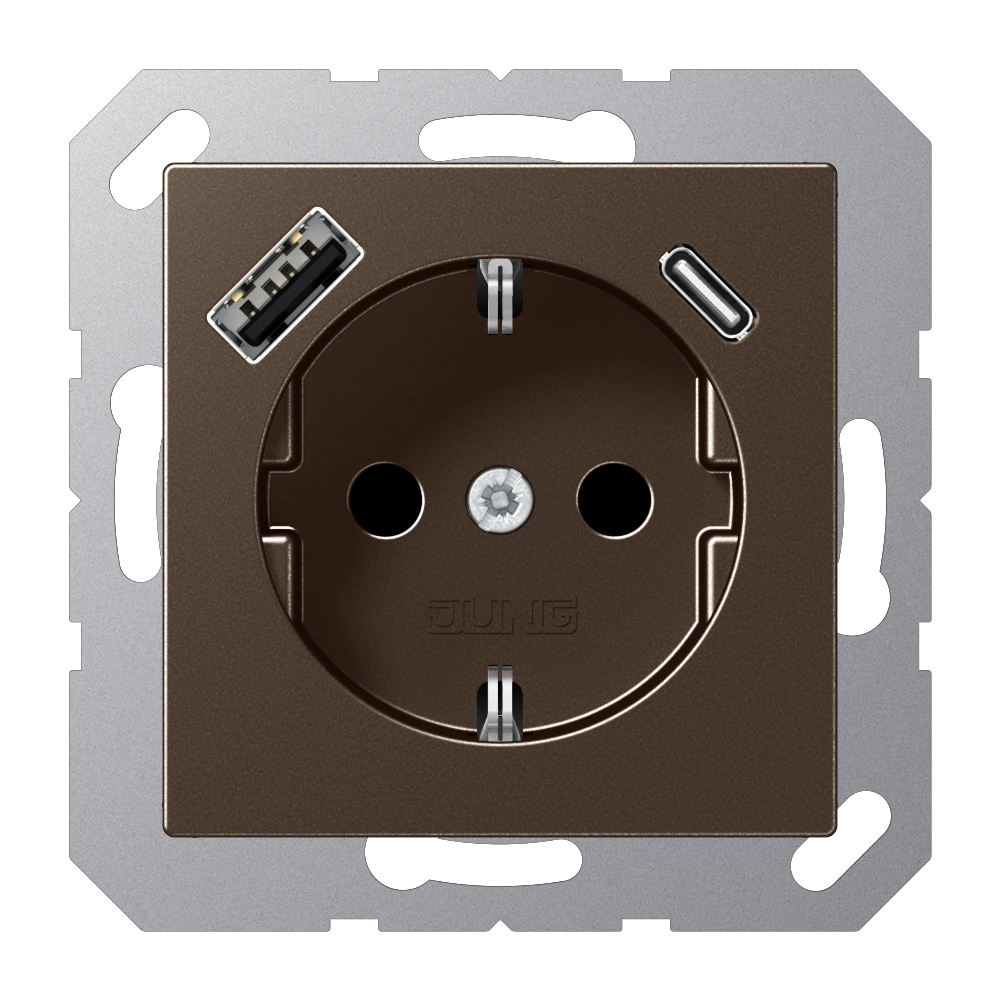

SCHUKO® socket with USB charger

Name: SCHUKO® socket with USB charger
Brand: JUNG
SKU: A1520-15CAMO
Price: 105810 KZT
Availability: InStock

Retail Price

105,810 ₸

In stock in Almaty · 6 pcs

Characteristics

Article number: A 1520-15 CA MO
EAN/GTIN: 4011377184374
Colour: mocha
Material: thermoplastic lacquered
Type: 1 x type A + 1 x type C
Width: 55 mm
Height: 55 mm

Description & specifications

SCHUKO® socket with USB charger with enhanced contact protection / shutter (Safety Plus) with 1 USB port type A and 1 USB port type C with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2 Installation in flush box with dimensions according to DIN 49073

Technical data

Rated voltage: AC 220 ... 250 V ~
Mains frequency: 50/60 Hz
Rated current: 16 A
Output voltage USB: DC 5 V
Output current USB (total): 3 A
Stand-by power: ≤ 25 mW
Ambient temperature: +5 ... +35 °C
Storage/transport temperature: −20 ... +70 °C
Connection mode: screwless terminals
single wire: 1.5 ... 2.5 mm²
stranded without ferrule: 1.5 ... 2.5 mm² Thermoplastic (breakproof) lacquered
Colour: mocha
Material: thermoplastic lacquered Individual colour printing possible
