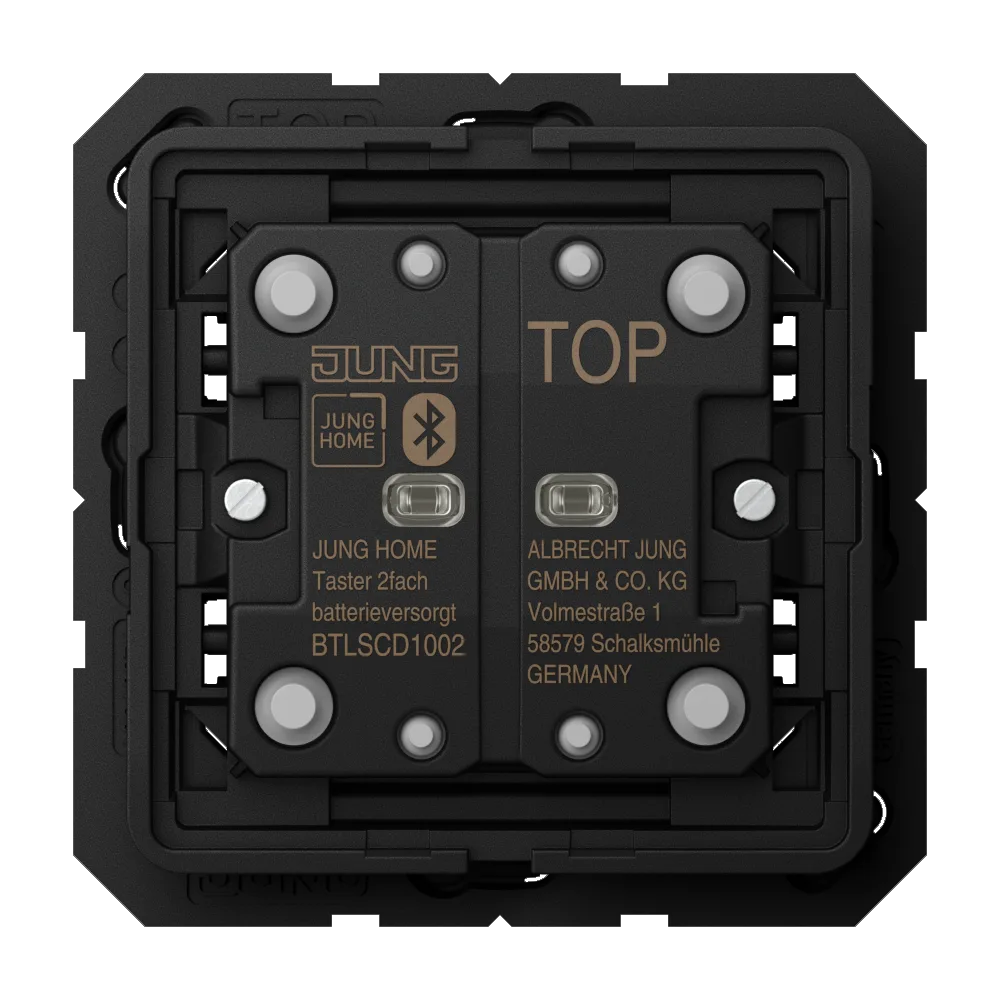

JUNG HOME push-button 2-gang, battery-powered
Retail Price
135,070 ₸
Made to order from Germany
Characteristics
- Article number
- BT LS CD 1002
- EAN/GTIN
- 4011377201422
Description & specifications
JUNG HOME push-button 2-gang, battery-powered including mounting plate, adhesive film and fastening screw for rockers ref.-no. .. 102 KO5 .. of the CD and LS ranges
Intended use
Product characteristics
(smartphone or tablet) via Bluetooth®
- Operation of e.g. Venetian blinds, shutters, awnings, lighting or fans
- Wireless linking with JUNG HOME system devices
- Mounting on wall box with dimensions according to DIN 49073
- Screw fixing on walls or adhesive fixing on smooth surfaces
- Commissioning and operation using JUNG HOME app with mobile device
- Multi-coloured status indicator
- Central functions: all ON/all OFF, call up scenes
- Disabling of local operation
- Fully encrypted wireless communication
- Compatible with Bluetooth® Mesh Standard
- Can be updated using JUNG HOME app
- Battery operation with one included lithium button cell
Technical data
- Rated voltage
- DC 3 V
- Ambient temperature
- −5 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Battery type
- 1 x lithium CR 2450 Duracell (recommended) or CR 2450N
- Radio frequency
- 2402.0 ... 2480.0 MHz
- Transmitting power
- max. 10 mW, class 1.5 Transmission range
- in buildings
- approx. 30 m
