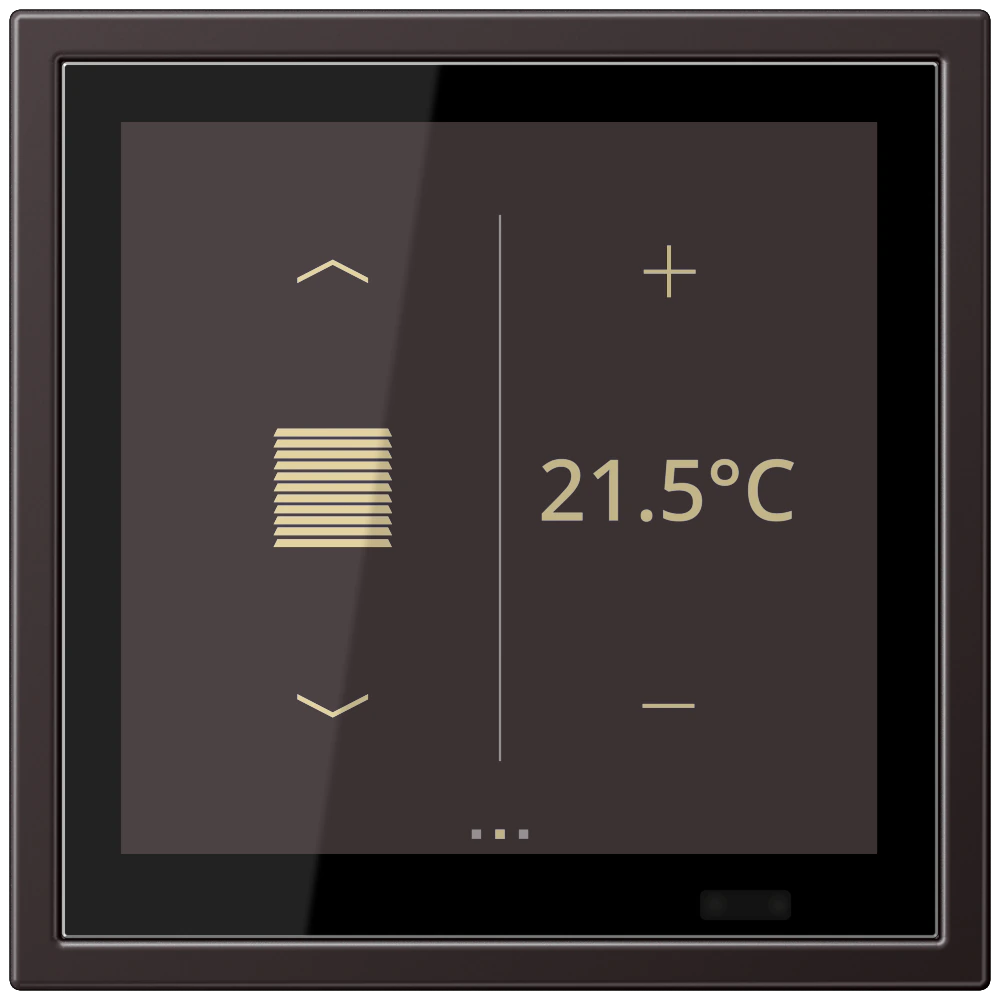

KNX room controller LS TOUCH — JUNG LS ZERO, Dark Al, art. LSZAL459BFD1SD — LS ZERO · Dark Al · LSZAL459BFD1SD

LS ZERO·LSZAL459BFD1SD

KNX room controller LS TOUCH

Retail Price

927,735 ₸

Made to order from Germany

Characteristics

Article number: LSZ AL 459 BF D 1S D
EAN/GTIN: 4011377206670
Colour: dark
KNX Secure: Secure

Description & specifications

KNX room controller LS TOUCH with integrated 1-gang frame LS ZERO Only install as a single device, not suitable for combinations!

Intended use

Product characteristics

Operation of loads (light switching, dimming, controlling blinds and shutters etc.)
Visualisation of system statuses and information (e.g. temperature and brightness)
Measurement and feedback control of the room temperature
Installation in flush box with dimensions according to DIN 49073
High resolution IPS colour display
Capacitive touchscreen
Function of favourites page adjustable (without ETS)
Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
Integrated room temperature sensor
Room temperature control with setpoint specification
Control of split units (only with update, available since July 2024)
Alarm function (optical and/or acoustic)
Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
Integrated proximity and brightness sensor
Integrated bus coupling unit
Connection of installation buttons or reed contacts possible
Commissioning and support of KNX Data Secure with ETS from version 5.7.4
Can be updated
Display of room temperature and setpoint temperature
Display of outdoor temperature – with external sensor, e.g. weather station

Technical data

Screen diagonal: 86 mm / 3.4’’
Resolution: 320 x 310
Recommended mounting height: 1.5 m KNX
KNX medium: TP 256
Security: X-mode
Commissioning mode: S-mode
Rated voltage: DC 21 ... 32 V SELV
Current consumption KNX: 60 mA
Connection, KNX: connection terminal
Connection cable: EIB-Y (St)Y 2x2x0.8
Protection class: III Connecting external switching contacts
Number: max. 20
Cable length: max. 25 m Ambient conditions
Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C
Relative humidity: 30 % ... 70 % metal colours (thermoplastic lacquered)
Colour: dark
Material: thermoplastic lacquered

Technical datasheet

Official JUNG document · PDF · LSZAL459BFD1SD

Russian English

What fits this frame

475

Rockers and sockets of the range that fit this frame — in its colour by default. Change the colour in the filter for another finish.

Rockers (13/213)

Color

1-gang rocker for switch and push-button

AL2990D

1-gang rocker for switch and push-button

22,135 ₸

1-gang rocker with symbol "bell"

AL2990KD

1-gang rocker with symbol "bell"

27,550 ₸

1-gang rocker with lens for switch and push-button with indicator light

AL2990KO5D

1-gang rocker with lens for switch and push-button with indicator light

24,410 ₸

1-gang rocker with symbol "bell", with lens

AL2990KO5KD

1-gang rocker with symbol "bell", with lens

32,105 ₸

1-gang rocker with symbol "light", with lens

AL2990KO5LD

1-gang rocker with symbol "light", with lens

32,105 ₸

1-gang rocker with symbol "door", with lens

AL2990KO5TD

1-gang rocker with symbol "door", with lens

32,105 ₸

1-gang rocker with symbol "light"

AL2990LD

1-gang rocker with symbol "light"

27,550 ₸

1-gang rocker for switch and push-button with inscription field

AL2990NAD

1-gang rocker for switch and push-button with inscription field

27,980 ₸

1-gang rocker with symbol "door"

AL2990TD

1-gang rocker with symbol "door"

27,550 ₸

2-gang rocker for switch and push-button

AL2995D

2-gang rocker for switch and push-button

29,275 ₸

Showing 10 of 13

Sockets (15/262)

Color

SCHUKO® socket with USB charger · child protection · screwless terminals

AL1520-15CAD

SCHUKO® socket with USB charger · child protection · screwless terminals

144,550 ₸

SCHUKO® socket with USB charger · child protection · screwless terminals

AL1520-18CD

SCHUKO® socket with USB charger · child protection · screwless terminals

144,550 ₸

SCHUKO® socket with LED floor pilot light · child protection · screwless terminals · illuminated

AL1520-ODLNW

SCHUKO® socket with LED floor pilot light · child protection · screwless terminals · illuminated

103,455 ₸

SCHUKO® socket · screwless terminals

AL1520D

SCHUKO® socket · screwless terminals

31,490 ₸

SCHUKO® socket with contact protection · child protection · screwless terminals

AL1520KID

SCHUKO® socket with contact protection · child protection · screwless terminals

36,415 ₸

SCHUKO® socket with hinged lid and contact protection · child protection · screwless terminals

AL1520KIKLD

SCHUKO® socket with hinged lid and contact protection · child protection · screwless terminals

46,145 ₸

SCHUKO® socket with contact protection and inscription field · child protection · screwless terminals

AL1520KINAD

SCHUKO® socket with contact protection and inscription field · child protection · screwless terminals

42,020 ₸

SCHUKO® socket with hinged lid · screwless terminals

AL1520KLD

SCHUKO® socket with hinged lid · screwless terminals

43,495 ₸

SCHUKO® socket with inscription field · screwless terminals

AL1520NAD

SCHUKO® socket with inscription field · screwless terminals

37,280 ₸

SCHUKO® socket with hinged lid and inscription field · child protection · screwless terminals

AL1520NAKLD

SCHUKO® socket with hinged lid and inscription field · child protection · screwless terminals

49,280 ₸

Showing 10 of 15

Logistics

Single Item

Packaging unit: 1 pc.
Weight: 0.13 KG
Length: 85 MM
Height: 73 MM
Width: 85 MM

Carton

Packaging unit: 10 pc.
Weight: 1.426 KG
Length: 360 MM
Height: 90 MM
Width: 175 MM
