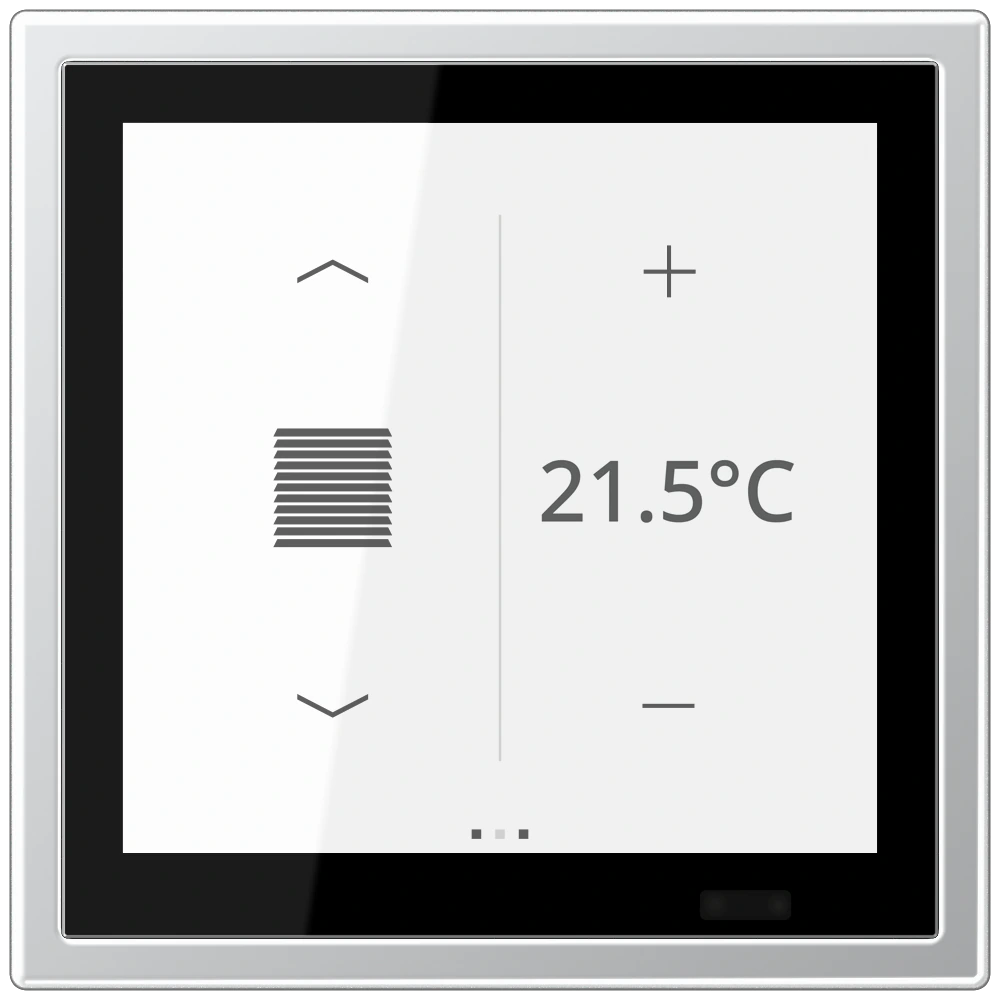

KNX room controller LS TOUCH — JUNG LS 990, aluminium, art. AL459D1S — LS 990 · aluminium · AL459D1S

LS 990·AL459D1S

KNX room controller LS TOUCH

Retail Price

923,915 ₸

Made to order from Germany

Characteristics

Article number: AL 459 D 1S
EAN/GTIN: 4011377194908
Colour: aluminium
KNX Secure: Secure

Description & specifications

KNX room controller LS TOUCH with integrated 1-gang frame LS 990 Only install as a single device, not suitable for combinations!

Intended use

Product characteristics

Operation of loads (light switching, dimming, controlling blinds and shutters etc.)
Visualisation of system statuses and information (e.g. temperature and brightness)
Measurement and feedback control of the room temperature
Installation in flush box with dimensions according to DIN 49073
High resolution IPS colour display
Capacitive touchscreen
Function of favourites page adjustable (without ETS)
Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
Integrated room temperature sensor
Room temperature control with setpoint specification
Control of split units (only with update, available since July 2024)
Alarm function (optical and/or acoustic)
Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
Integrated proximity and brightness sensor
Integrated bus coupling unit
Connection of installation buttons or reed contacts possible
Commissioning and support of KNX Data Secure with ETS from version 5.7.4
Can be updated
Display of room temperature and setpoint temperature
Display of outdoor temperature – with external sensor, e.g. weather station

Technical data

Screen diagonal: 86 mm / 3.4’’
Resolution: 320 x 310
Recommended mounting height: 1.5 m KNX
KNX medium: TP 256
Security: X-mode
Commissioning mode: S-mode
Rated voltage: DC 21 ... 32 V SELV
Current consumption KNX: 60 mA
Connection, KNX: connection terminal
Connection cable: EIB-Y (St)Y 2x2x0.8
Protection class: III Connecting external switching contacts
Number: max. 20
Cable length: max. 25 m Ambient conditions
Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C
Relative humidity: 30 % ... 70 % Metal versions
Colour: aluminium
Material: aluminium AlMg1

Technical datasheet

Official JUNG document · PDF · AL459D1S

Russian English

What fits this frame

475

Rockers and sockets of the range that fit this frame — in its colour by default. Change the colour in the filter for another finish.

Rockers (21/213)

Color

1-gang rocker for switch and push-button

AL2990

1-gang rocker for switch and push-button

19,825 ₸

1-gang rocker with symbol "bell"

AL2990K

1-gang rocker with symbol "bell"

24,595 ₸

1-gang rocker with lens for switch and push-button with indicator light

AL2990KO5

1-gang rocker with lens for switch and push-button with indicator light

21,795 ₸

1-gang rocker with symbol "bell", with lens

AL2990KO5K

1-gang rocker with symbol "bell", with lens

28,690 ₸

1-gang rocker with embossed symbol "bell", with lens

AL2990KO5KP

1-gang rocker with embossed symbol "bell", with lens

34,875 ₸

1-gang rocker with symbol "light", with lens

AL2990KO5L

1-gang rocker with symbol "light", with lens

28,690 ₸

1-gang rocker with embossed symbol "light", with lens

AL2990KO5LP

1-gang rocker with embossed symbol "light", with lens

34,875 ₸

1-gang rocker with symbol "door", with lens

AL2990KO5T

1-gang rocker with symbol "door", with lens

28,690 ₸

1-gang rocker with embossed symbol "door", with lens

AL2990KO5TP

1-gang rocker with embossed symbol "door", with lens

34,875 ₸

1-gang rocker with embossed symbol "bell"

AL2990KP

1-gang rocker with embossed symbol "bell"

30,845 ₸

Showing 10 of 21

Sockets (18/262)

Color

SCHUKO® socket · screwless terminals

AL1520

SCHUKO® socket · screwless terminals

28,075 ₸

SCHUKO® socket with USB charger · child protection · screwless terminals

AL1520-15CA

SCHUKO® socket with USB charger · child protection · screwless terminals

141,500 ₸

SCHUKO® socket with USB charger · child protection · screwless terminals

AL1520-18C

SCHUKO® socket with USB charger · child protection · screwless terminals

141,500 ₸

SCHUKO® socket with LED floor pilot light · child protection · screwless terminals · illuminated

AL1520-OLNW

SCHUKO® socket with LED floor pilot light · child protection · screwless terminals · illuminated

100,595 ₸

SCHUKO® socket with contact protection · child protection · screwless terminals

AL1520KI

SCHUKO® socket with contact protection · child protection · screwless terminals

23,260 ₸

SCHUKO® socket with hinged lid and contact protection · child protection · screwless terminals

AL1520KIKL

SCHUKO® socket with hinged lid and contact protection · child protection · screwless terminals

34,350 ₸

SCHUKO® socket with contact protection and inscription field · child protection · screwless terminals

AL1520KINA

SCHUKO® socket with contact protection and inscription field · child protection · screwless terminals

37,645 ₸

SCHUKO® socket with hinged lid · screwless terminals

AL1520KL

SCHUKO® socket with hinged lid · screwless terminals

38,970 ₸

SCHUKO® socket with inscription field · screwless terminals

AL1520NA

SCHUKO® socket with inscription field · screwless terminals

33,245 ₸

SCHUKO® socket with hinged lid and inscription field · child protection · screwless terminals

AL1520NAKL

SCHUKO® socket with hinged lid and inscription field · child protection · screwless terminals

44,140 ₸

Showing 10 of 18

Logistics

Single Item

Packaging unit: 1 pc.
Weight: 0.112 KG
Length: 80 MM
Height: 28 MM
Width: 80 MM

Carton

Packaging unit: 1 pc.
Weight: 0.162 KG
Length: 84 MM
Height: 72 MM
Width: 84 MM

Outer Carton

Packaging unit: 10 pc.
Weight: 1.746 KG
Length: 360 MM
Height: 90 MM
Width: 175 MM
