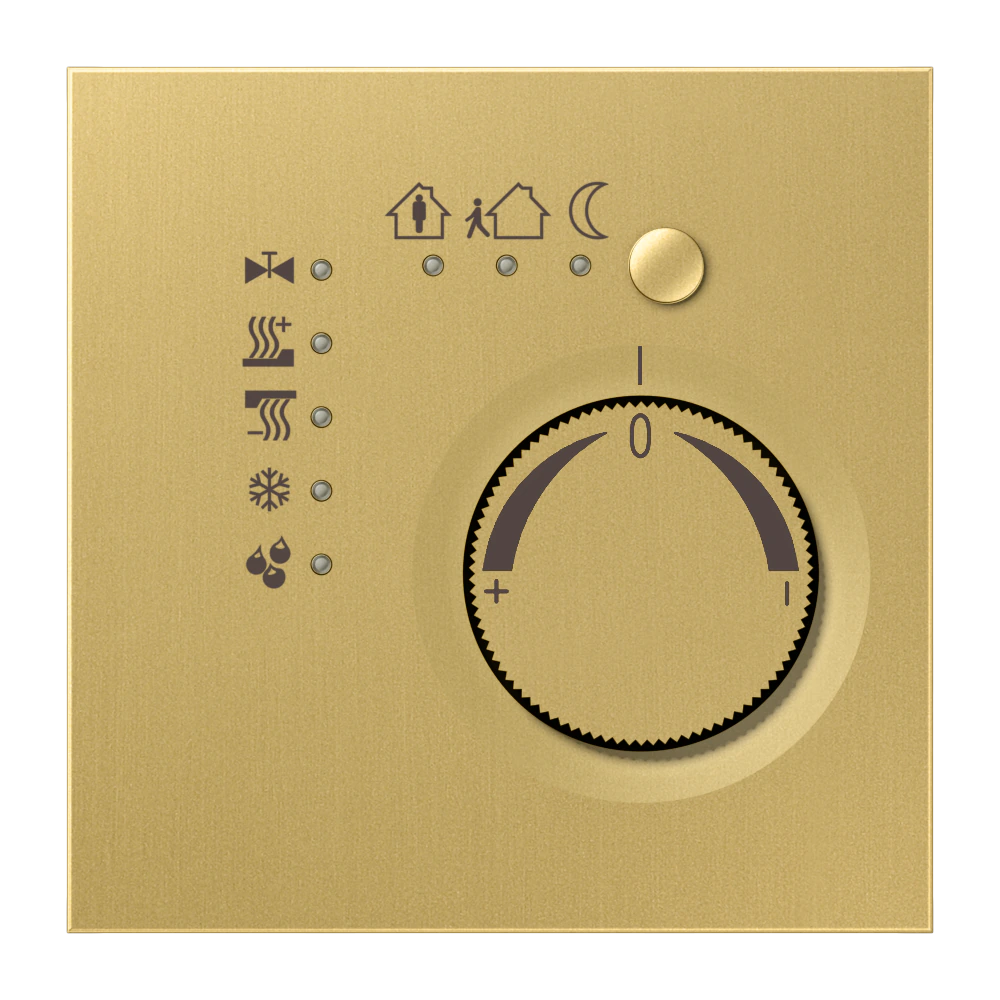

Room temperature controller with push-button interface 4-gang
Retail Price
580,465 ₸
Made to order from Germany
Characteristics
- Article number
- ME 2178 TS C
- EAN/GTIN
- 4011377093065
- Colour
- classic brass
- Material
- brass
- Width
- 70 mm
- Height
- 70 mm
Description & specifications
KNX room temperature controller with integrated push-button interface 4-gang with rotary knob for setpoint adjustment Only with the ETS 3.0d version or later versions the full functionality will be available.
Intended use
Product characteristics
- Single-room temperature control in KNX installations
- Type of loads for binary output: LED or electronic relais
- Installation in flush box with dimensions according to DIN 49073
- Integrated bus coupling unit
- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Setpoint adjustment
- Presence push-button
- Status LEDs
- Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
- Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
Technical data
- KNX medium
- TP 256
- Rated voltage KNX
- DC 21 ... 32 V SELV
- Current consumption KNX
- max. 10 mA
- Connection, KNX
- connection terminal
- Ambient temperature
- −5 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C Metal versions
- Colour
- classic brass
- Material
- brass
Compatible Products
19Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Frames (4)
Color
Accessories (3)
Other finishes (1/12)
Color
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang · for KNX bus modules
- Room temperature controller with push-button interface 4-gang
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.135 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 1.346 KG
- Length
- 360 MM
- Height
- 90 MM
- Width
- 175 MM
