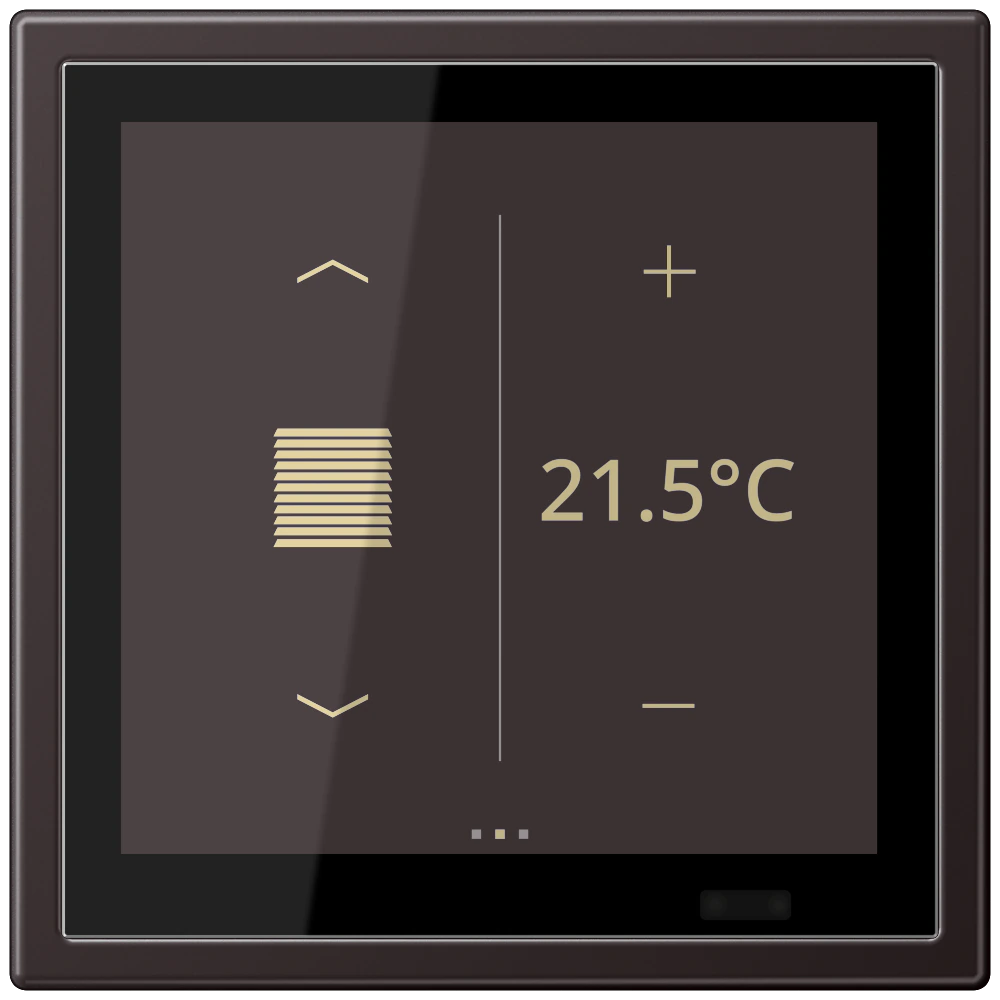

KNX room controller LS TOUCH — JUNG LS 990, Dark Al, art. AL459D1SD — LS 990 · Dark Al · AL459D1SD

LS 990·AL459D1SD

KNX room controller LS TOUCH

Retail Price

927,735 ₸

Made to order from Germany

Characteristics

Article number: AL 459 D 1S D
EAN/GTIN: 4011377194939
Colour: dark (aluminium lacquered)
KNX Secure: Secure

Description & specifications

KNX room controller LS TOUCH with integrated 1-gang frame LS 990 Only install as a single device, not suitable for combinations!

Intended use

Product characteristics

Operation of loads (light switching, dimming, controlling blinds and shutters etc.)
Visualisation of system statuses and information (e.g. temperature and brightness)
Measurement and feedback control of the room temperature
Installation in flush box with dimensions according to DIN 49073
High resolution IPS colour display
Capacitive touchscreen
Function of favourites page adjustable (without ETS)
Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
Integrated room temperature sensor
Room temperature control with setpoint specification
Control of split units (only with update, available since July 2024)
Alarm function (optical and/or acoustic)
Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
Integrated proximity and brightness sensor
Integrated bus coupling unit
Connection of installation buttons or reed contacts possible
Commissioning and support of KNX Data Secure with ETS from version 5.7.4
Can be updated
Display of room temperature and setpoint temperature
Display of outdoor temperature – with external sensor, e.g. weather station

Technical data

Screen diagonal: 86 mm / 3.4’’
Resolution: 320 x 310
Recommended mounting height: 1.5 m KNX
KNX medium: TP 256
Security: X-mode
Commissioning mode: S-mode
Rated voltage: DC 21 ... 32 V SELV
Current consumption KNX: 60 mA
Connection, KNX: connection terminal
Connection cable: EIB-Y (St)Y 2x2x0.8
Protection class: III Connecting external switching contacts
Number: max. 20
Cable length: max. 25 m Ambient conditions
Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C
Relative humidity: 30 % ... 70 % Metal versions
Colour: dark (aluminium lacquered)
Material: aluminium lacquered

Technical datasheet

Official JUNG document · PDF · AL459D1SD
