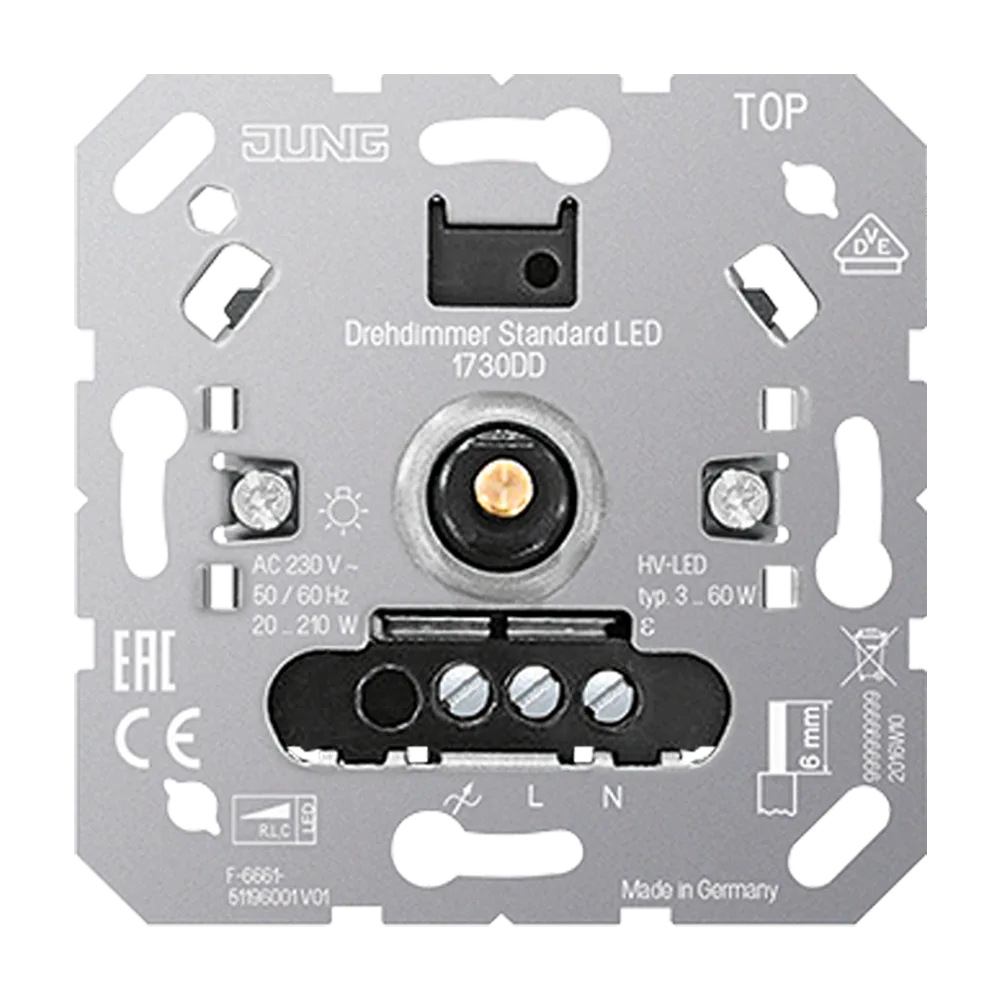

Standard rotary dimmer LED

Name: Standard rotary dimmer LED
Brand: JUNG
SKU: 1730DD
Price: 77280 KZT
Availability: InStock

Retail Price

77,280 ₸

In stock in Almaty · 1 pcs

Characteristics

Standard rotary dimmer LED incremental control without end position without satellite input

Intended use

Product characteristics

Switching and dimming of lighting
Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073
Device works according to the leading edge phase control or trailing edge phase control principle
Automatic setting of the dimming principle suitable for the load
Device can be operated without neutral conductor
Switch-on via bulb-preserving soft start
Switch-on with last brightness or saved switch-on brightness
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Maximum brightness can be saved permanently
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)

Tutorial operating instructions

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Stand-by power: approx. 0.35 W
Power loss: approx. 2 W
Ambient temperature: −5 ... +45 °C Connected load at 25 °C
Incandescent lamps: 20 ... 210 W
HV halogen lamps: 20 ... 210 W
Electronic transformers: 20 ... 210 W
Electronic transformers with LV LED: typical 20 ... 60 W
Inductive transformers: 20 ... 210 VA
Inductive transformers with LV LED: typical 20 ... 60 VA
Dimmable HV LED lamps: typical 3 ... 60 W
Dimmable compact fluorescent lamps: typical 3 ... 60 W
Ohmic-capacitive: 20 ... 210 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 210 VA
Ohmic and HV LED: typical 3 ... 60 W
Ohmic and CFL: typical 3 ... 60 W
Operation without neutral conductor: Minimum load 50 W. Does not apply to loads with HV LED and compact fluorescent lamps.
Amplifiers: see instructions for amplifier Connection screw terminals
single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
Total length power cable: max. 100 m
