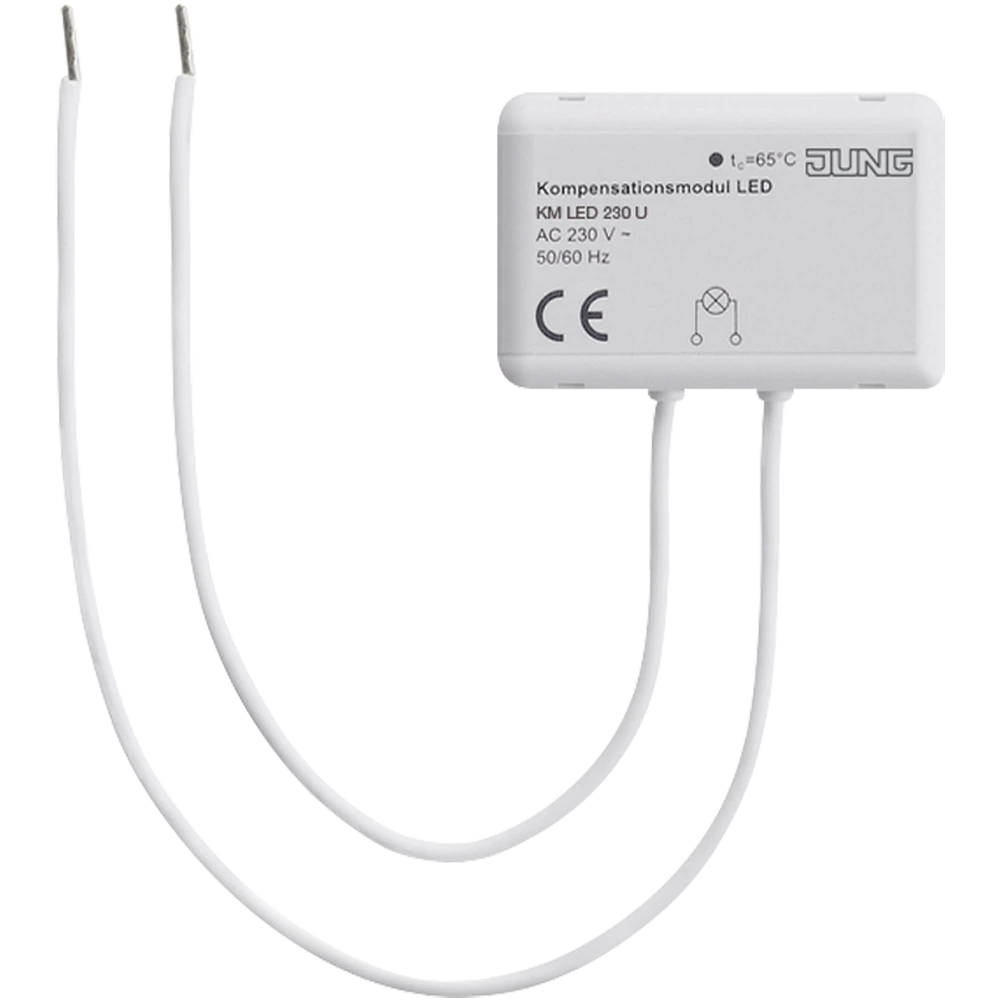

Compensation module LED
Retail Price
43,925 ₸
Made to order from Germany
Characteristics
- Article number
- KM LED 230 U
- EAN/GTIN
- 4011377176607
Description & specifications
Compensation module LED
Intended use
1224 LED UDE, 1252 UDE, 1710 DE, 1711 DE, 1712 DE, 1724 DM, 1724 DEB, 1730 DD, 1731 DD, 211 GDE, 225 TDE, 254 UDIE1, 3901 REGHE, 3902 REGHE, 39004 1S R, 824 TDW, FM UD 20250 UP, FM UD 420250 REG, FM UD 5500 REG, UD 1255 REG, UD 1755 REG, ULZ 1755 REG, UDS 4 REGHE) LED lamps
- Use in interiors
- Installation in lamp, flush box with dimensions according to DIN 49073 or distribution box
- improve the dimming behaviour of dimmers which are not optimised for HV-LED lamps
- to avoid that HV LED lamps which are connected to a dimmer glow when switched off
- to avoid that HV LED lamps which are connected to a switch with illumination (up to
3 mA) glow when they are switched off
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Power loss
- max. 2 W
- Housing temperature
- max. 65 °C
- Cable length
- approx. 150 mm
- Dimensions (W x H x D)
- 43 x 11.5 x 28.5 mm
Compatible Products
10Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Cover plates (3)
Accessories (7)
1724DM
Dimmer mini universal LED
123,125 ₸

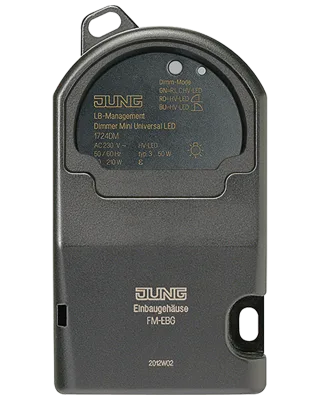

1724DEB
Universal dimmer LED, built-in
132,760 ₸

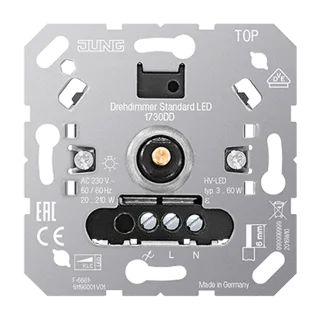

1730DD
Standard rotary dimmer LED
77,280 ₸
1731DD
Universal rotary dimmer LED · screw terminals
99,935 ₸
211GDE
Rotary dimmer with 2-way push switch · screw terminals
225,475 ₸
UD1755REG
Universal dimmer LED
239,045 ₸
UDS4REGHE
LED universal dimming station 4-gang · screw terminals
806,675 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 43 G
- Length
- 81 MM
- Height
- 40 MM
- Width
- 81 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 431 G
- Length
- 220 MM
- Height
- 87 MM
- Width
- 170 MM
