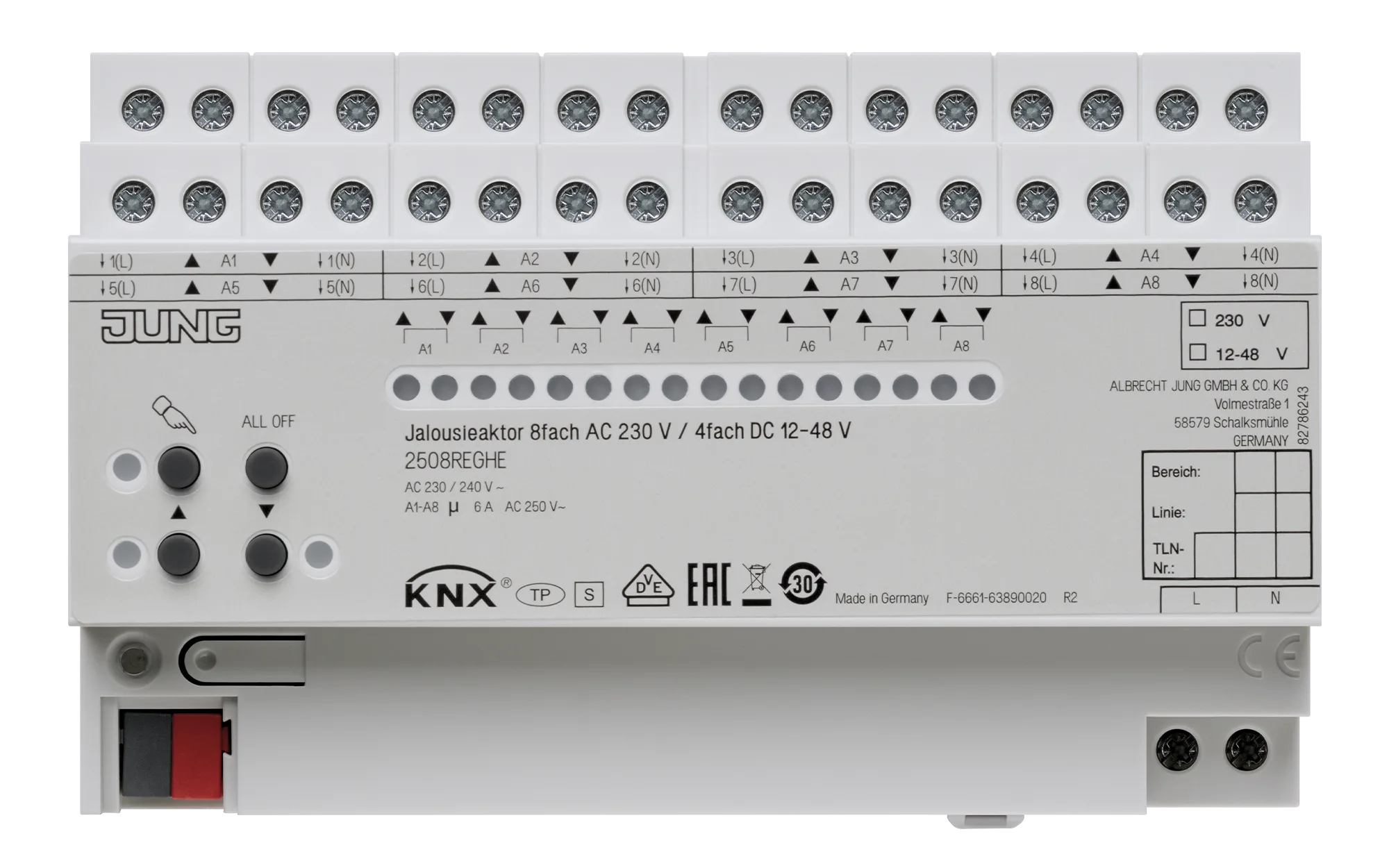

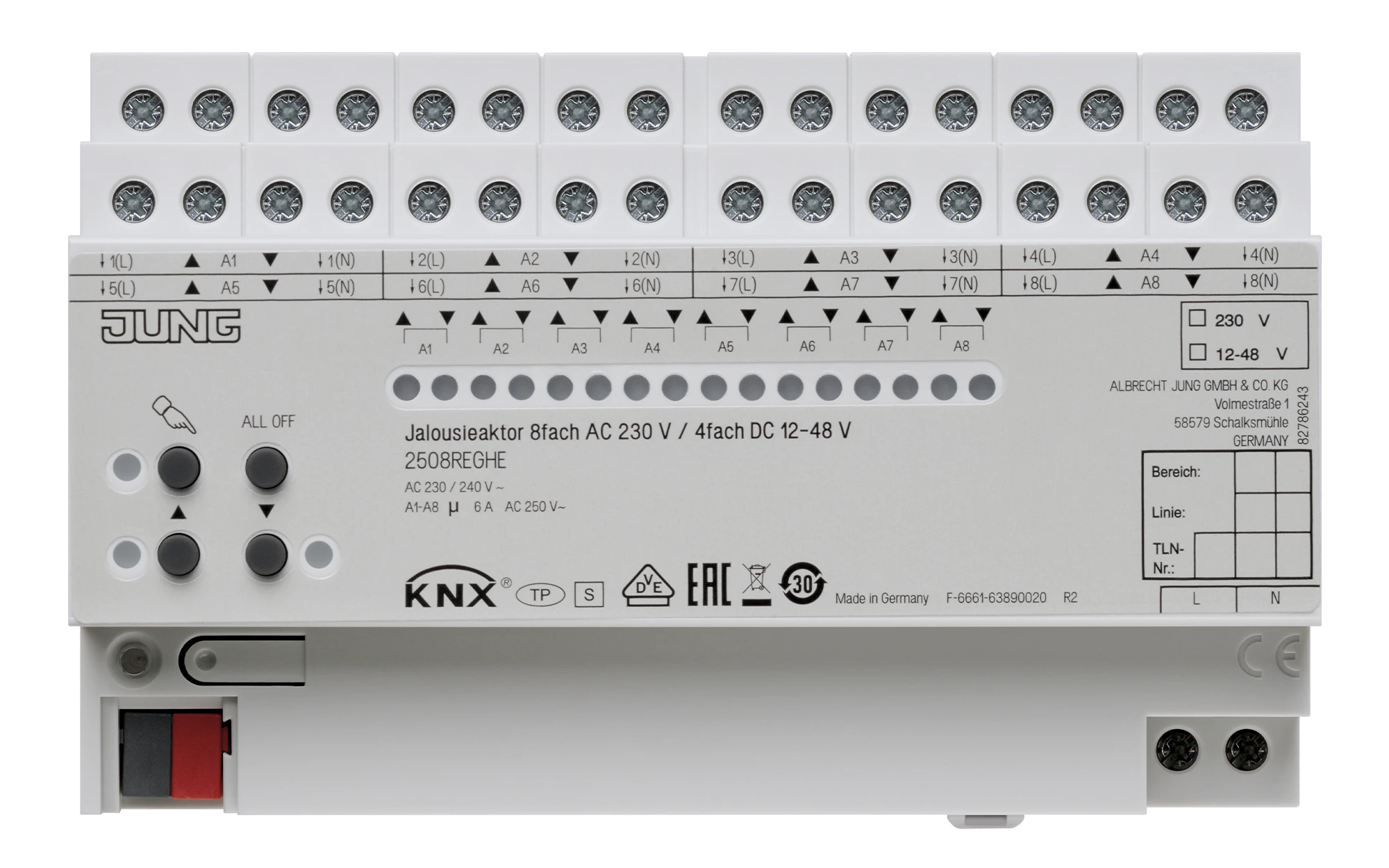

Blinds actuator, 8-gang AC 110-230 V, 4-gang DC 12-48 V
Retail Price
524,865 ₸
Made to order from Germany
Characteristics
- Article number
- 2508 REGHE
- EAN/GTIN
- 4011377031012
Description & specifications
KNX blinds actuator, 8-gang AC 110 – 230 V, 4-gang DC 12 – 48 V rail mounting device, 8 rail units with manual electronic operation and LED status indication Only with the ETS 3.0d version or later versions the full functionality will be available.
Intended use
Product characteristics
- Switching of electrically driven blinds, shutters and awnings for AC 110-230 V mains voltage or DC 12-48 V extra-low voltage
- Mounting on DIN rail in distribution box
- Suitable for 110 ... 230 V AC motors and 12 ... 48 V DC motors
- Automatic operation time detection for 230 V motors can be set
- Slat position directly controllable
- Acknowledgement of travelling state and slat position in bus and manual operation
- Scene function
- Top and bottom forced position via higher-level controller
- Sun protection function
Technical data
- KNX medium
- TP 256
- Outputs
- 8 channels AC 110 ... 230 V, 4 channels DC 12 ... 48 V
- Power supply mains
- AC 110 V (−10 %) ... 240 V (+10 %)
- Mains frequency
- 50/60 Hz Connection
- Connection mode
- screw terminals
- single wire
- 1 x 0.5 ... 4 mm²
- stranded without ferrule
- 1 x 0.5 ... 4 mm²
- stranded with ferrule
- 1 x 0.5 ... 2.5 mm²
- Breaking capacity AC1
- 6 A (230 V)
- Switching current DC 12/24 V
- 6 A
- Switching current DC 48 V
- 3 A
- Max. blind/shutter running time
- 20 min
- Power loss
- max. 6 W
- Ambient temperature
- −5 ... +45 °C
- Storage temperature
- −25 ... +70 °C
- Approvals
- VDE
Compatible Products
7Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Accessories (7)
20160REG
Power supply 160 mA · for KNX bus modules
178,165 ₸
20320REG
Power supply 320 mA · for KNX bus modules
246,460 ₸
20640REG
Power supply 640 mA · for KNX bus modules
275,770 ₸
21280REG
Power supply 1280 mA · for KNX bus modules
459,835 ₸
203201SIPSR
Power supply with IP interface · for KNX bus modules
598,970 ₸
A10921ST
KNX push-button universal 2-gang
161,030 ₸
2225WSU
Universal weather station · for KNX bus modules
1,813,575 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.712 KG
- Length
- 180 MM
- Height
- 95 MM
- Width
- 120 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.712 KG
- Length
- 180 MM
- Height
- 95 MM
- Width
- 120 MM
