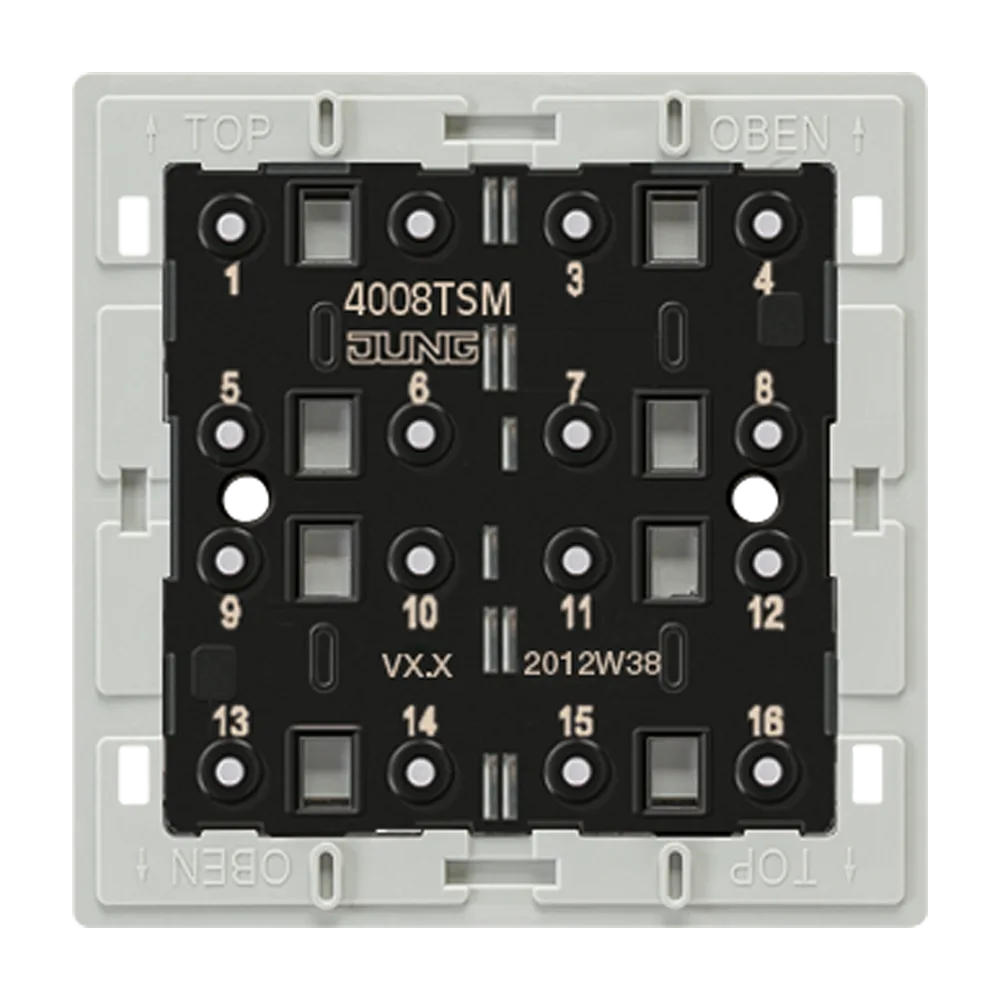

Push-button module

Push-button module (JUNG bus) for the connection of relay station (ref.-no. RS 8 REGHE) and dimming station (ref.-no.

AS / A ranges without adapter frame. Product characteristics

• 8 channels of the relay station can be controlled: switching, push-button, dimming, blinds
• All station channels are switchable in delivery state
• Central function: all selected station channels are controlled centrally
• Light scenes: up to 4 light scenes can be set freely
• Push-buttons can be assigned according to cover kit
• Programming without additional tools
• Free assignment of the groups to the channels
• Red LED as status indicator (can be switched off)
• Blue orientation LED (can be switched off)
• Feedback of the switching states to connected push-button modules and sensor modules
• Up to 4 push-button modules with max. 4 extension modules can be connected to single or parallel connected relay/dimming stations
• Cloning of modules: transfer the assignment of one module to further modules
• Cloning of push-button modules with extension module is possible
• Simple installation via 2-wire cable
