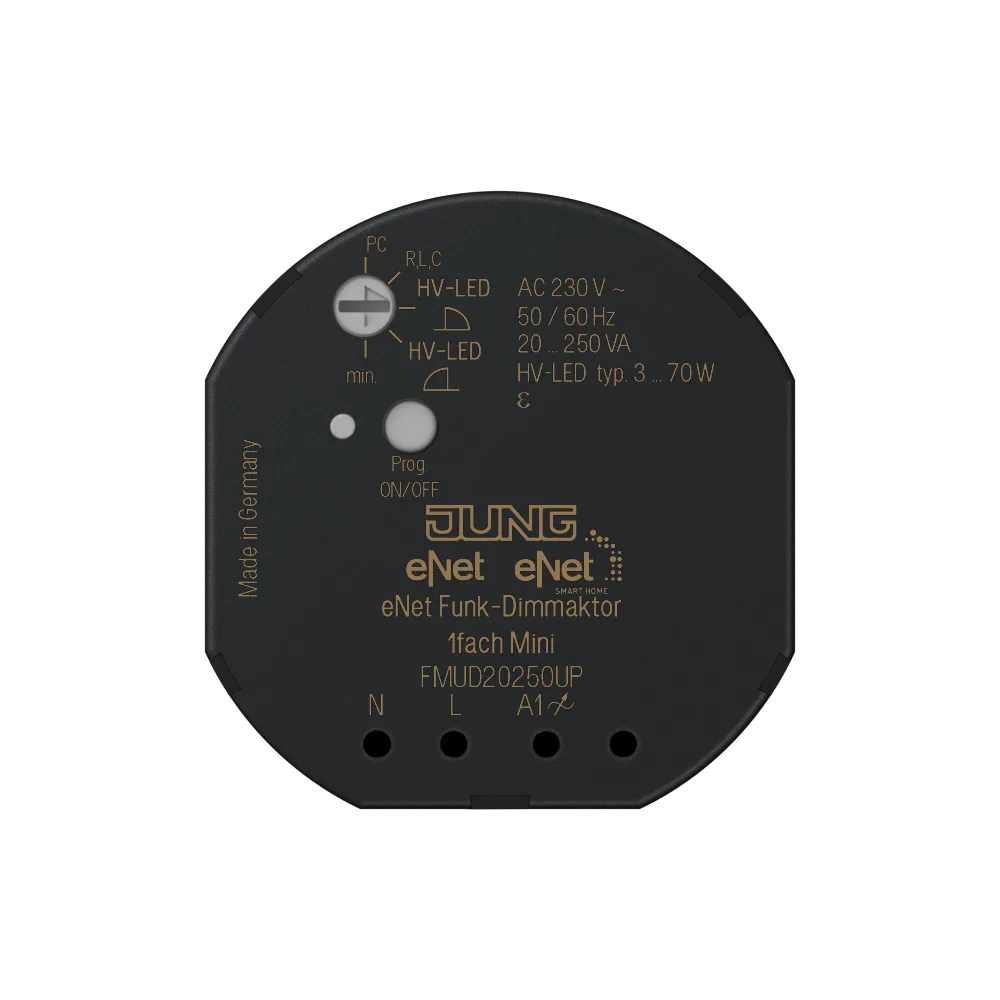

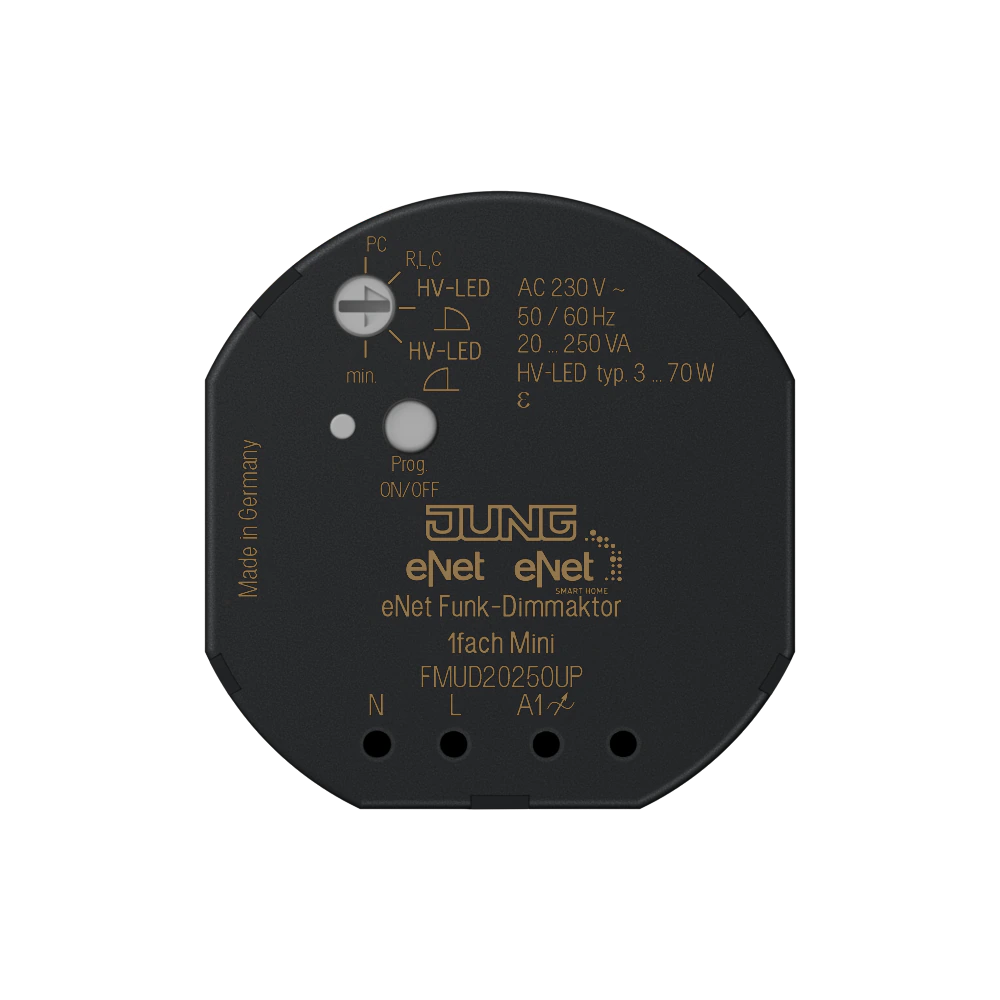

eNet radio dimming actuator 1-gang mini
Retail Price
183,810 ₸
Made to order from Germany
Characteristics
- Article number
- FM UD 20250 UP
- EAN/GTIN
- 4011377086876
Description & specifications
Intended use
Product characteristics
- Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
- Operation with suitable eNet radio transmitters a suitable cover
- Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
- Switch-on via bulb-preserving soft start
- Switch-on brightness can be saved permanently
- Minimum brightness can be saved permanently
- Scene operation possible
- Status indication with LED
- Status feedback to radio transmitter
- Switchable with Prog button
- Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
- Electronic over-temperature protection
- Automatic or manual setting of the dimming principle suitable for the load
- Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)
- Maximum brightness
- Dimming speed
- Switch-on delay / switch-off delay
- Dim up/dim down ramp
- Switch-off warning
- Operating locks
- Continuous on, Continuous off
- Hotel function
- Run-on time
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Repeater function
- Reading of error memory
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50/60 Hz
- Power loss
- max. 1.5 W
- Stand-by power
- max. 0.5 W
- Ambient temperature
- −25 ... +70 °C Connected load at 45 °C Power specifications including transformer power dissipation. Operate inductive transformers with at least 85 % nominal load. For ohmic-inductive mixed load, maximum 50 % proportion of ohmic load. Otherwise incorrect calibration of the dimmer may result.
- Incandescent lamps
- 20 ... 250 W
- HV halogen lamps
- 20 ... 250 W
- Electronic transformers
- 20 ... 250 W
- Electronic transformers with LV LED
- typical 20 ... 100 W
- Inductive transformers
- 20 ... 250 VA
- Inductive transformers with LV LED
- typical 20 ... 100 VA
- Dimmable HV LED lamps
- typical 3 ... 70 W If the operating mode is set to HV LED trailing edge phase control, the maximum connected load for LED lamps increases to typ. 200 W.
- Dimmable compact fluorescent lamps
- typical 3 ... 70 W
- Ohmic-inductive
- 20 ... 250 VA
- Ohmic-capacitive
- 20 ... 250 W
- Capacitive-inductive
- not permitted
- Ohmic and HV LED
- typical 3 ... 70 W
- Ohmic and CFL
- typical 3 ... 70 W Reduction of load for every 5 °C
- exceededing 45 °C
- -5 %
- for installation into wooden or hollow walls
- −15 %
- for installation into multiple combinations
- −20 %
- Amplifiers
- see instructions for amplifier
- Connection mode
- screw terminals
- single wire
- 1 x 0.75 ... 4 mm²
- stranded with ferrule
- 1 x 0.75 ... 2.5 mm²
- Total length power cable
- max. 100 m
- Dimensions (Ø x H)
- 53 x 28 mm
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmitting power
- max. 20 mW
- Transmission range in free field
- typical 100 m
- Receiver category
- 2
