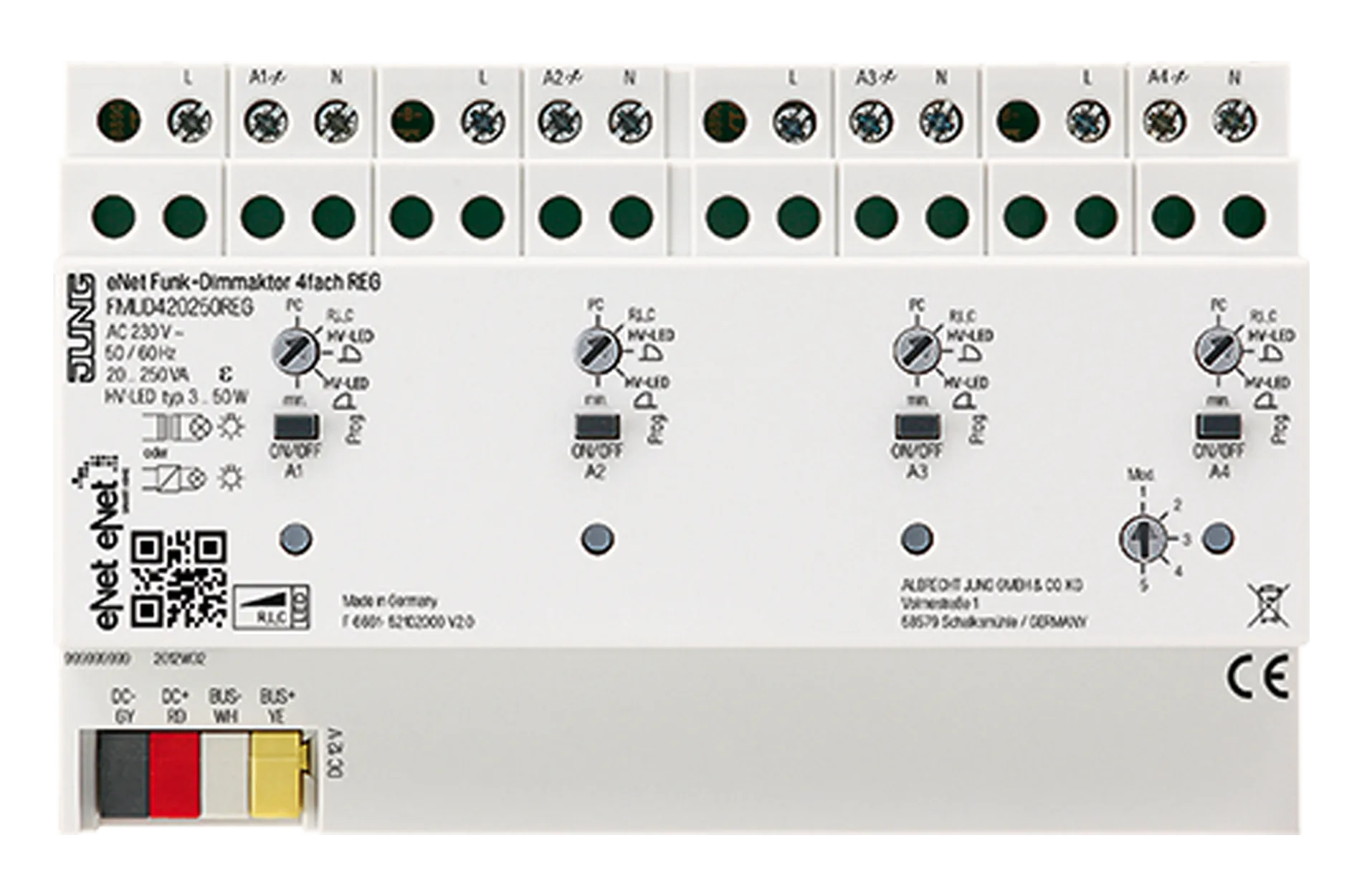

eNet radio dimming actuator 4-gang, for rail mounting
Retail Price
630,175 ₸
Made to order from Germany
Characteristics
- Article number
- FM UD 420250 REG
- EAN/GTIN
- 4011377087545
Description & specifications
eNet radio dimming actuator 4-gang, for rail mounting rail mounting device, 8 rail units
Intended use
(ref.-no. FM FK 32 REG) or eNet server
Product characteristics
- Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
- Operation with power supply (ref.-no. NT 1220 REG VDC) and eNet radio receiver
- Operation with suitable eNet radio transmitters
- Mounting on DIN rail according to EN 60715 in distribution box
- Switch-on via bulb-preserving soft start
- Switch-on brightness for each output can be saved permanently
- Minimum brightness for each output can be saved permanently
- Scene operation possible
- Status indication of the outputs via LED
- Status feedback to radio transmitter
- Outputs switchable with Prog button
- Increase in output power possible through parallel switching of multiple outputs
- Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
- Electronic over-temperature protection
- Automatic or manual setting of the dimming principle suitable for the load
- Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)
- Maximum brightness
- Dimming speed
- Switch-on delay / switch-off delay
- Dim up/dim down ramp
- Switch-off warning
- Operating locks
- Continuous on, Continuous off
- Hotel function
- Run-on time
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Reading of error memory
Technical data
- Rated voltage
- DC 12 V SELV
- Power loss
- max. 8 W
- Stand-by power
- max. 1.2 W
- Ambient temperature
- −5 ... +45 °C Connected load per output at 45 °C Power specifications including transformer power dissipation. Operate inductive transformers with at least 85 % nominal load. For ohmic-inductive mixed load, maximum 50 % proportion of ohmic load. Otherwise incorrect calibration of the dimmer may result. Max. load for outputs connected in parallel is limited to 95 %. The minimum load of parallel switching of load outputs is 250 VA.
- Incandescent lamps
- 20 ... 250 W
- HV halogen lamps
- 20 ... 250 W
- Electronic transformers
- 20 ... 250 W
- Electronic transformers with LV LED
- typical 20 ... 100 W
- Inductive transformers
- 20 ... 250 VA
- Inductive transformers with LV LED
- typical 20 ... 100 VA
- Dimmable HV LED lamps
- typical 3 ... 50 W
- Dimmable compact fluorescent lamps
- typical 3 ... 50 W With setting "LED trailing edge phase control" the max. connection power for HV LED lamps and electronic transformers with LV LED doubles.
- Ohmic-inductive
- 20 ... 250 VA
- Ohmic-capacitive
- 20 ... 250 VA
- Capacitive-inductive
- not permitted
- Amplifiers
- see instructions for amplifier Connection, outputs
- Connection mode
- screw terminals
- single wire
- 1 x 1.5 ... 4 mm²
- stranded without ferrule
- 1 x 0.75 ... 4 mm²
- stranded with ferrule
- 1 x 0.5 ... 2.5 mm²
- Length of output cable per channel
- max. 100 m
- Mounting width
- 144 mm (8 rail units) Bus line
- Current consumption
- 10 mA
- Connection bus
- terminal
- Cable length
- max. 3 m
Compatible Products
7Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (2)
Cover plates (1)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 457 G
- Length
- 165 MM
- Height
- 77 MM
- Width
- 95 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 457 G
- Length
- 165 MM
- Height
- 77 MM
- Width
- 95 MM
