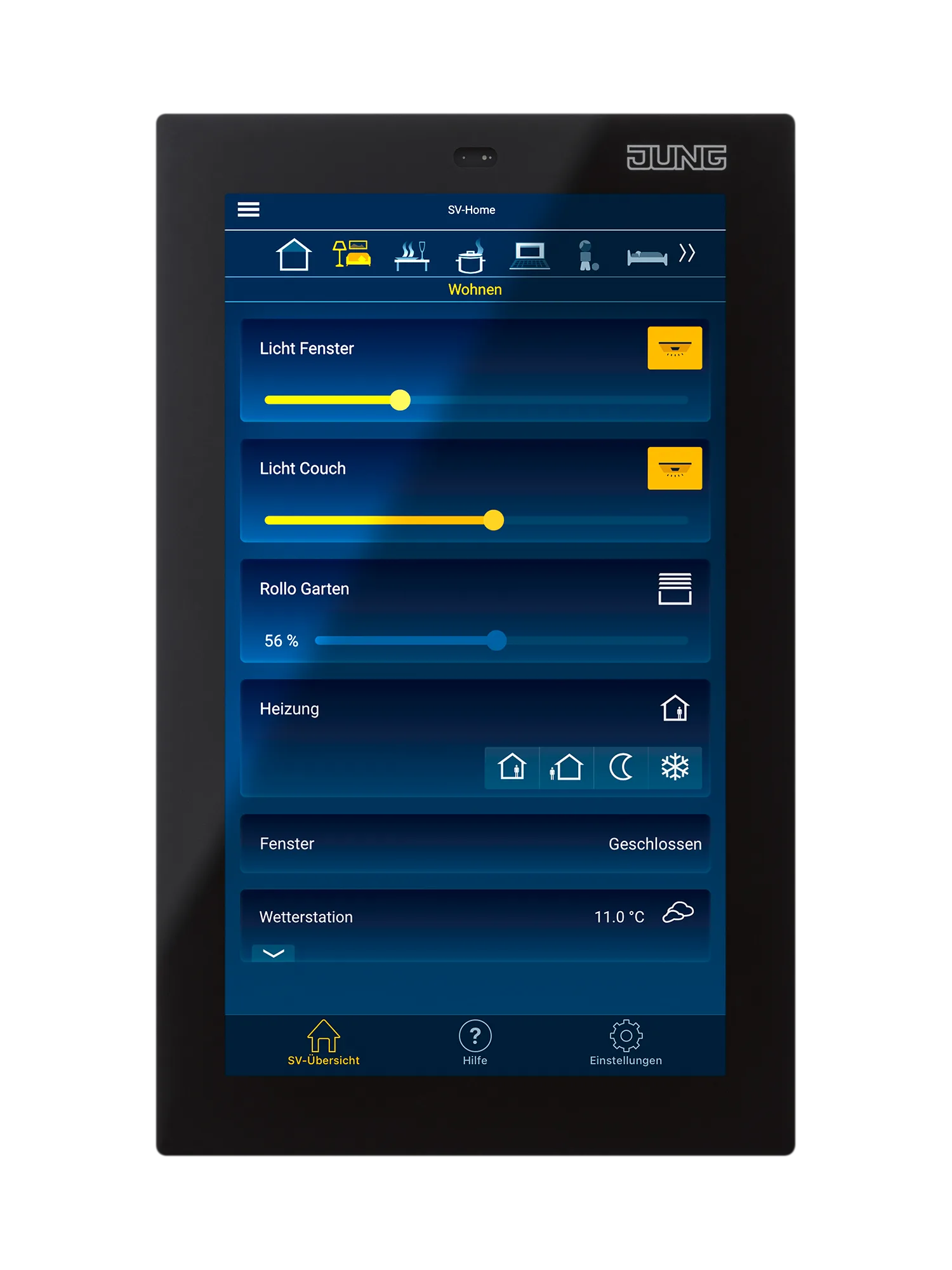

Smart Control 5
Retail Price
1,040,145 ₸
Made to order from Germany
Characteristics
- Article number
- SC 5 SW
- EAN/GTIN
- 4011377171893
- Colour
- black
Description & specifications
Intended use
Product characteristics
SERVER) with software version 2.2 or higher SG 650-.. or SG 150-..
- Visualisation and operation of system statuses and information on building automation
- For vertical installation
- Installation in flush box with dimensions according to DIN 49073
- Ensure correct orientation when installing the flush box. Mounting screws must be in vertical alignment.
- High performance HD screen
- Capacitive touchscreen
- Fanless, without rotating parts
- Proximity sensor
- Graphical user interface
- Brightness level of display adapts automatically to ambient brightness
- Display of diagrams not possible
- Image memory integrated in Smart Gateway
Technical data
- Rated voltage
- DC 24 V SELV
- Rated capacity
- 12 W
- Screen diagonal
- 127 mm / 5’’
- Resolution
- 1080 x 1920
- Frame dimensions (W x H)
- 81 x 132 mm
- Power supply
- PoE acc. to IEEE 802.3af or DC 24 V via external power supply (not included)
- Processor
- Cortex-A53
- Loudspeaker
- integrated
- Microphone
- integrated
- LAN connections
- 1 x 10/100 Mbit/s
- Ambient temperature
- 0 ... +30 °C
- Colour
- black
Compatible Products
8Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.309 KG
- Length
- 130 MM
- Height
- 35 MM
- Width
- 80 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.309 KG
- Length
- 165 MM
- Height
- 70 MM
- Width
- 100 MM
