Visu Pro Server
Retail Price
3,171,435 ₸
Made to order from Germany
Characteristics
- Article number
- JVP-SERVER-H3GB
- EAN/GTIN
- 4011377363212
- Version
- English, including adapter for UK and China
Description & specifications

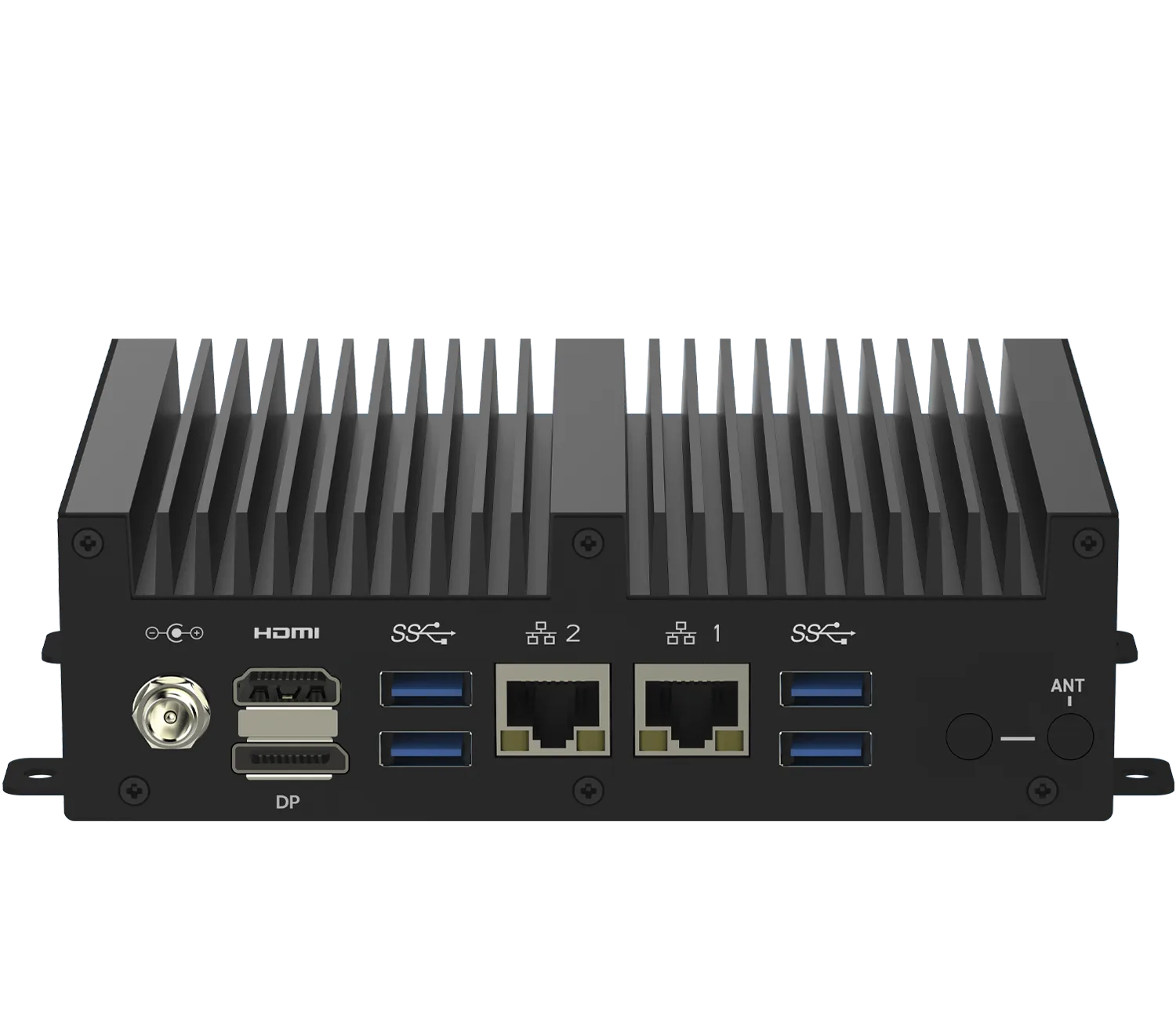

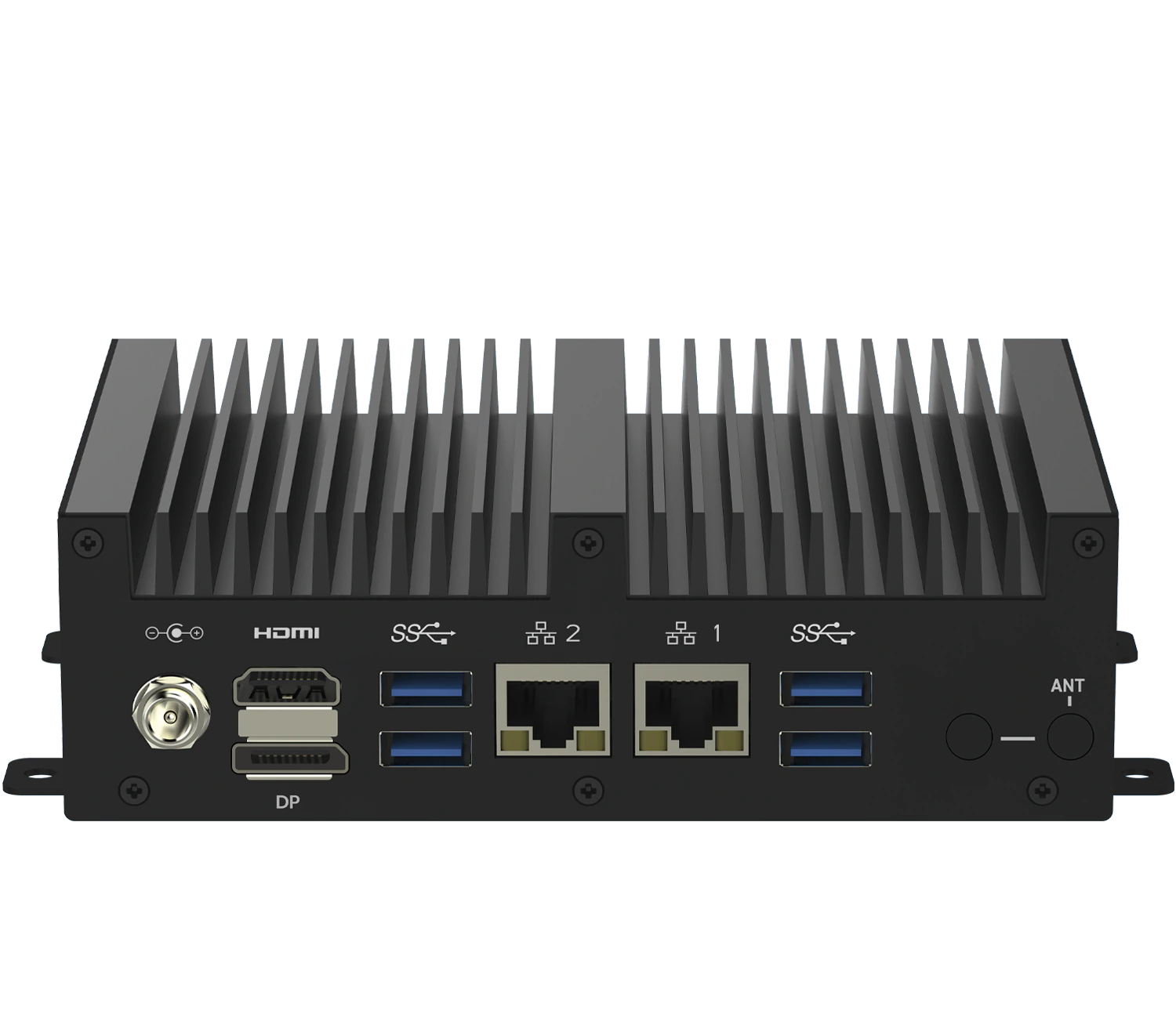

Visu Pro Server fanless, without rotating parts including plug-in power supply
Intended use
Protocol), or with static IP address (IPv4)
20320 1S IPS R, 2131 USBS REG, 2131 USBS), not included Product characteristics
Process connections
Data import from ETS
- Mini PC for domestic applications and small commercial facilities
- Visualisation and operation of KNX systems via devices with HTML5 browser or app tablet, laptop, PC, etc.
- Support of KNX IP Secure and KNX Data Secure
- Operation in local IP networks that support DHCP (Dynamic Host Configuration
- Desktop device, mounting on DIN rail according to EN 60715 possible
- Connection to KNX bus via interfaces (ref.-no. IPR 300 SREG, IPS 300 SREG,
- Fanless mini PC
- JUNG Visu Pro software pre-installed and activated
- Windows 10 IoT 2021 pre-installed
- Quadcore Intel Celeron processor
- 8 GB RAM
- 128 GB internal memory, partly used by operating system
- 1 x DisplayPort
- 1 x HDMI
- 4 x USB 3.0
- 2 x LAN RJ45 (LAN 1: static IP address, LAN 2: DHCP)
- The visualisation can be realised with devices with a browser suitable for HTML5 (e.g. latest version of Chrome, Firefox or Safari)
- Access from max. 10 different clients possible
- Integration of Amazon Alexa voice control via myJUNG account
- Integration of Google Home voice control via myJUNG account
- Integration of Samsung SmartThings via myJUNG account
- Secure remote access via myJUNG account (JVP-L necessary)
- Secure remote sharing with further myJUNG accounts
- Reading and controlling Modbus data via Modbus TCP
- Access to IP cameras via RTSP
- Control of IP cameras via ONVIF (profile S)
- Multilingual visualisation can be created
- Visualisation switchable between day/night
- Update and upgrade compatible
- KNX editor / KNX editor 2.0
- instalight editor
- Device editor
- vitaLED editor
- XPL editor
- Modbus editor
- Process model
- Visualisation editor
- Work sheet generator
- Calendar
- JUNG Visu Pro Starter
- Use of project export of ETS
- The ETS keyring is required for a KNX Secure connection
Technical data
- Rated voltage
- DC 12 V
- Power consumption
- typical 6 W, max. 12 W
- Ambient temperature
- −5 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Dimensions (W x H x D)
- 168 x 106 x 45 mm
- Protection class
- II
- Primary voltage
- AC 100 ... 240 V ~
- Mains frequency
- 50/60 Hz
- Secondary voltage
- DC 12 V SELV
- Secondary current
- 2 A
