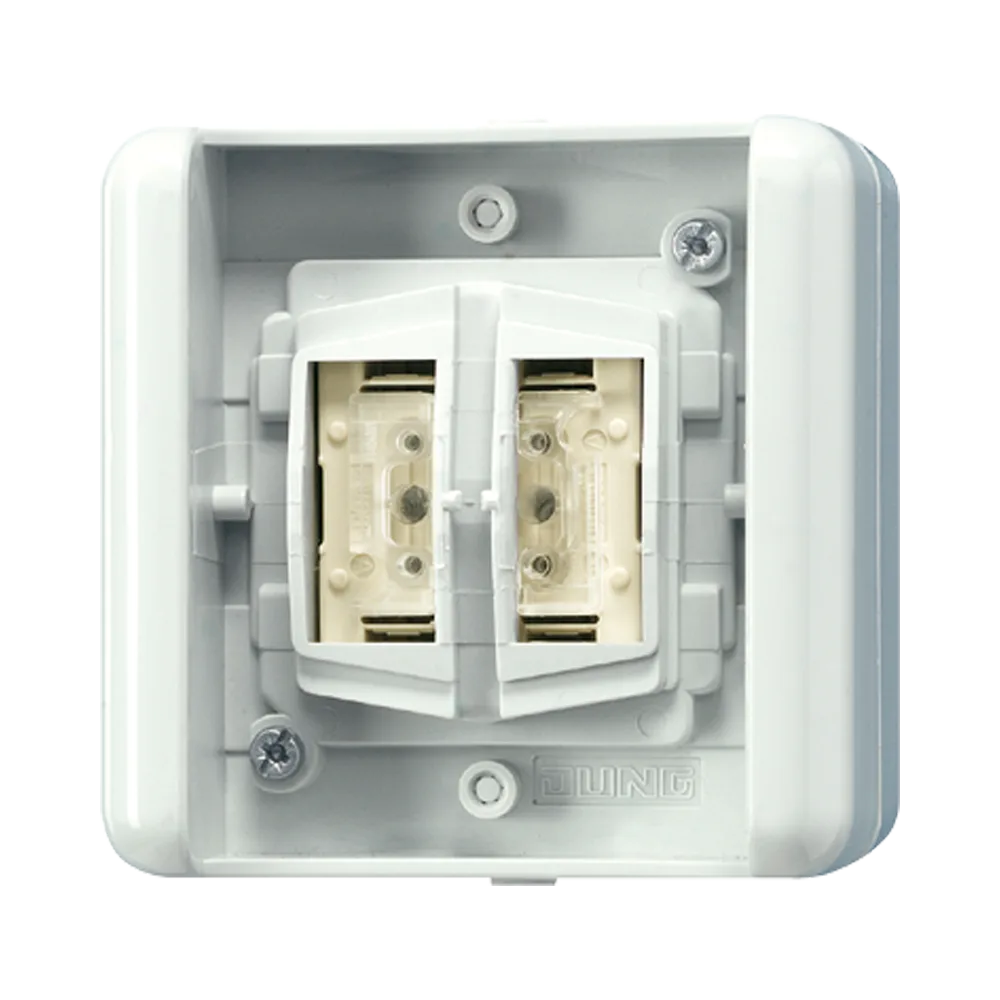

2-gang push-button BCU, switch position
Retail Price
146,305 ₸
Made to order from Germany
Characteristics
- Article number
- 8472.01 LED W
- EAN/GTIN
- 4011377086593
- Version
- 2-gang
- Colour
- ivory
Description & specifications
KNX push-button BCU, switch position Depending on the version of the push-button BCU – 1-gang rocker or 2-gang rocker – centre plates are used with and without indication lights. The “upper” or “lower” rockers can be controlled with the push-button with “neutral position”, while only the “lower” rocker can be pressed with the push-button with “switch position”. The push-button BCU can only function with an application program i.e. the push-button BCU consists of the device (hardware) and the application program (software).
Can operate up to two different groups (with switch function). The status LED serves as orientation light or status indication.
Technical data
- Function
- switching, dimming, shutter control
- LED
- always ON, always OFF
- KNX medium
- TP 256
- Version
- 2-gang
Compatible Products
4Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Cover plates (3)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.132 KG
- Length
- 85 MM
- Height
- 73 MM
- Width
- 85 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 1.316 KG
- Length
- 360 MM
- Height
- 90 MM
- Width
- 175 MM
Palette
- Packaging unit
- 1440 pc.
- Weight
- 212.08 KG
- Length
- 1200 MM
- Height
- 1476 MM
- Width
- 800 MM
