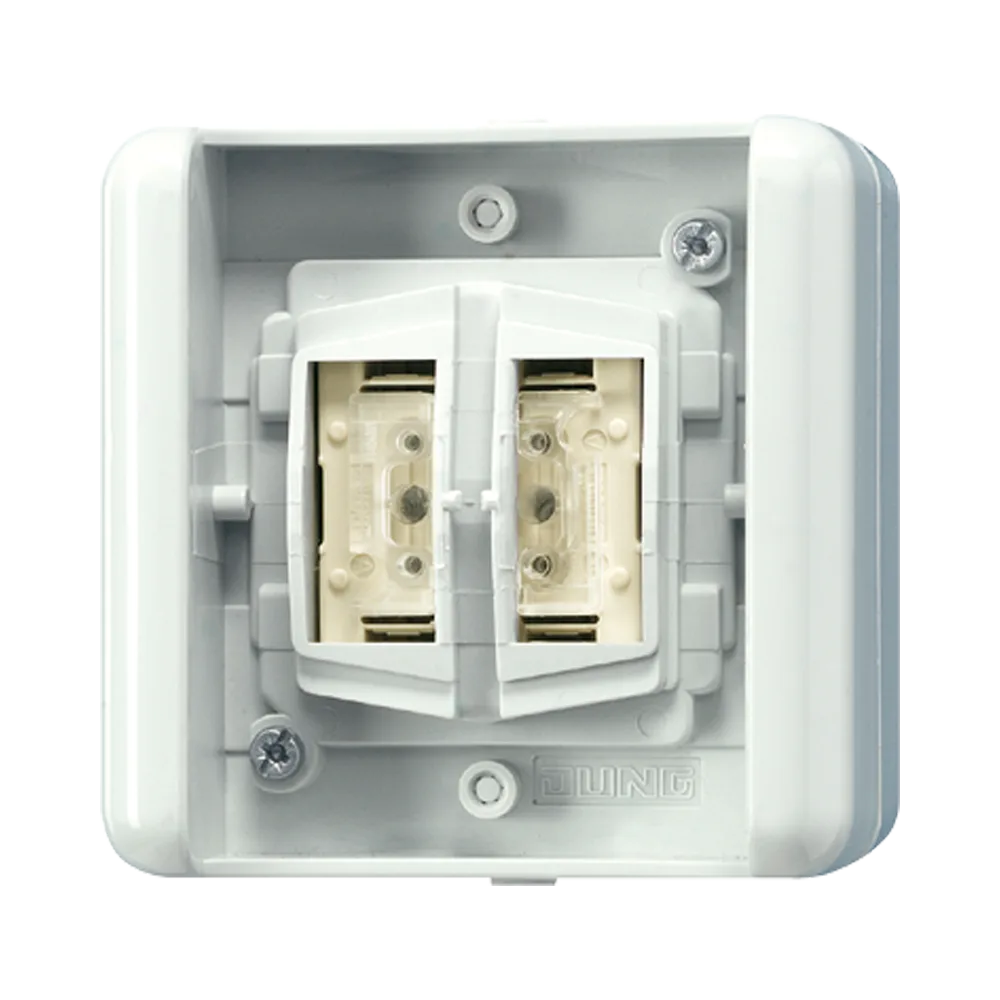

2-gang push-button BCU, neutral position
Retail Price
174,285 ₸
Made to order from Germany
Characteristics
- Article number
- 8472.02 LED W
- EAN/GTIN
- 4011377086616
- Version
- 2-gang
- Colour
- ivory
Description & specifications
KNX push-button BCU, neutral position Depending on the version of the push-button BCU – 1-gang rocker or 2-gang rocker – centre plates are used with and without indication lights. The “upper” or “lower” rockers can be controlled with the push-button with “neutral position”, while only the “lower” rocker can be pressed with the push-button with “switch position”. The push-button BCU can only function with an application program i.e. the push-button BCU consists of the device (hardware) and the application program (software).
Can operate up to four different groups (with switch function). The status LED serves as orientation light or status indication.
Technical data
- Function
- switching, dimming, shutter control
- LED
- always ON, always OFF, LED object, actuation indication
- KNX medium
- TP 256
- Version
- 2-gang
Compatible Products
4Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Cover plates (3)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.116 KG
- Length
- 76 MM
- Height
- 62 MM
- Width
- 74 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.148 KG
- Length
- 84 MM
- Height
- 72 MM
- Width
- 84 MM
Outer Carton
- Packaging unit
- 10 pc.
- Weight
- 1.608 KG
- Length
- 360 MM
- Height
- 88 MM
- Width
- 182 MM
Palette
- Packaging unit
- 1200 pc.
- Weight
- 212.08 KG
- Length
- 1200 MM
- Height
- 1490 MM
- Width
- 800 MM
