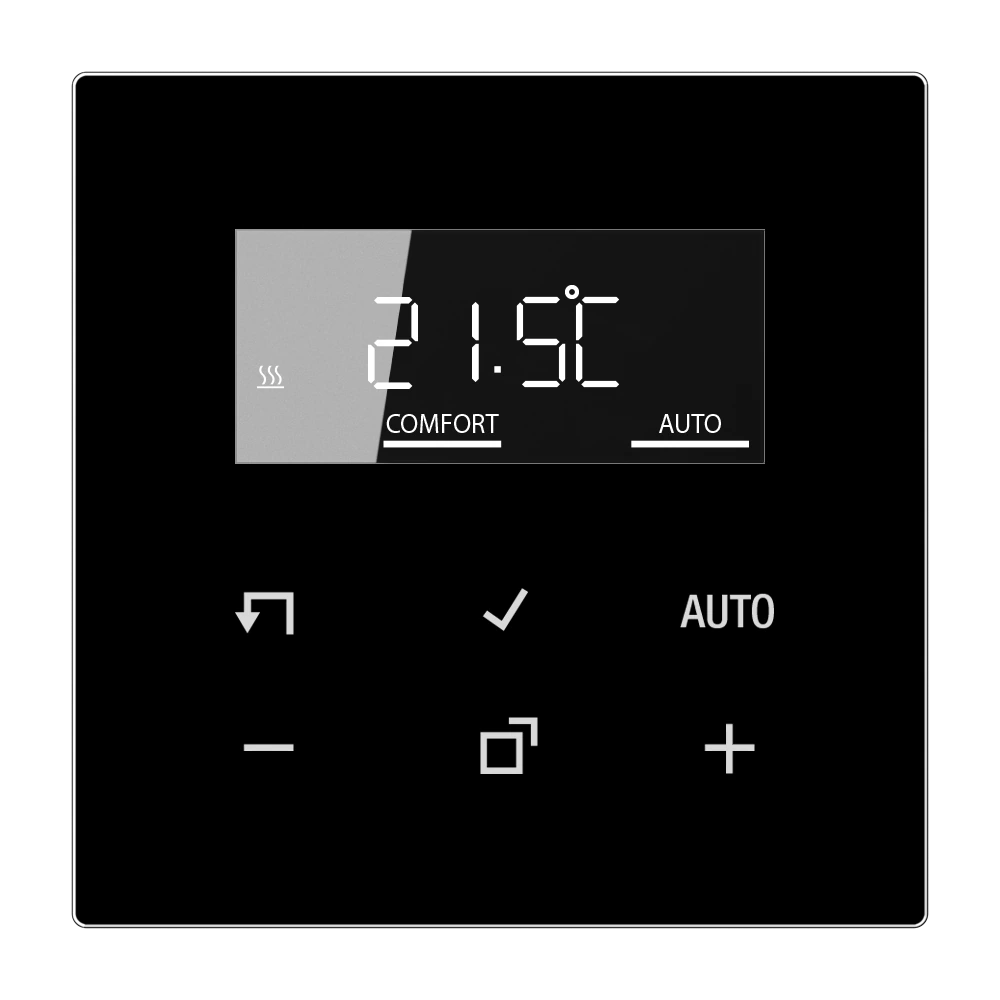

JUNG HOME room thermostat display

JUNG HOME room thermostat display

Intended use

Product characteristics

(smartphone or tablet) via Bluetooth®

• Manual and time-controlled regulation of the room temperature
• Wireless linking with JUNG HOME system devices
• Operation with system insert for room temperature control
• Operation with system insert for switching
• Commissioning and operation using JUNG HOME app with mobile device
• Up to 16 time programs for automatic heating
• Switch between manual/automatic operation using JUNG HOME app or local operation
• Automatic date and time update when connecting with mobile device
• Time programs with sunrise or sunset (astro timer)
• Setting a comfort, ECO, cooling and frost protection temperature
• Setting range for min. and max. temperature value can be changed
• Boost function: Quick heat-up for max. 5 minutes
• Illuminated segment display for easy reading
• Display switch-off after 2 minutes or continuous display possible
• Disabling of local operation
• Including the load in areas (groups), central functions and scenes
• Optimised heating up (temperature is reached at the set time), can be switched off
• Adaptation to valves (normally open or normally closed)
• Cooling mode possible (optimised for heat pumps)
• Supports internal and external temperature sensor
• Temperature sensor offset (correction value for the measured temperature)
• Controller output working method: pulse width modulation (PWM) or two-point
• Room thermostat can be linked with switch actuators and sockets
