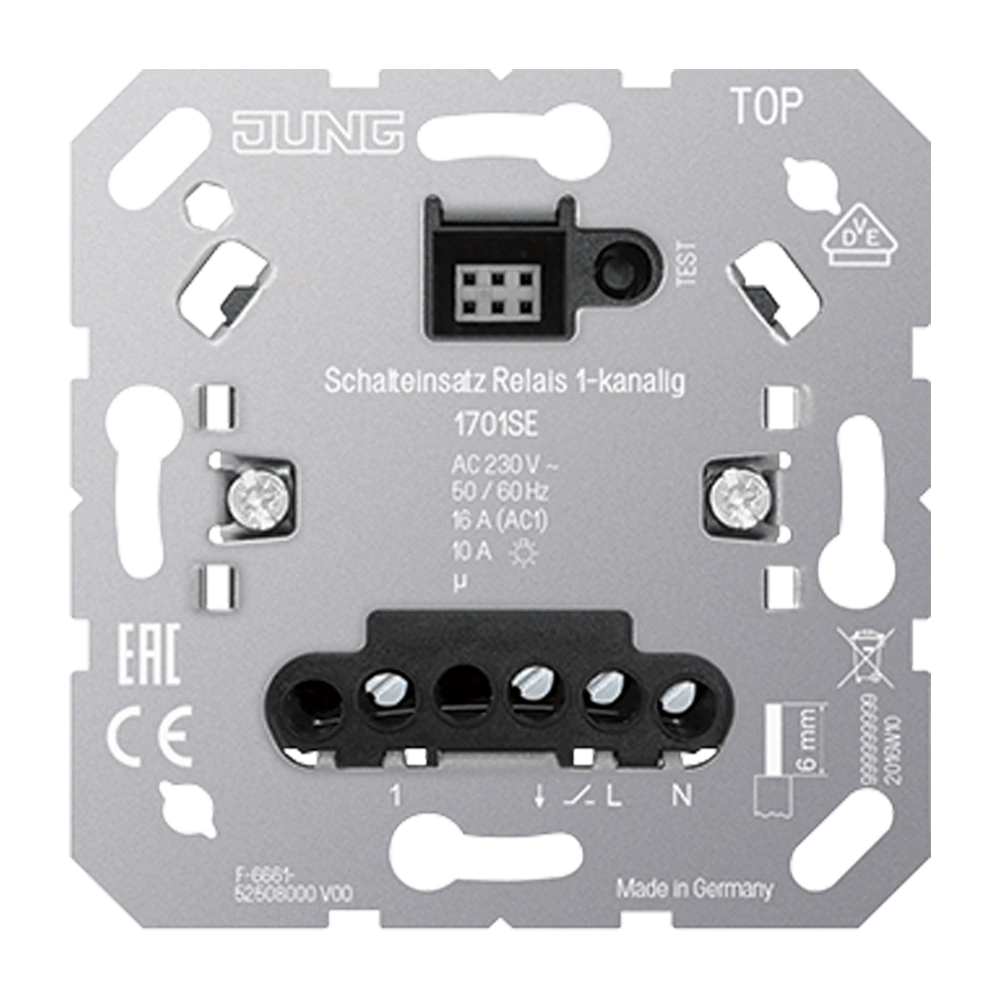

Relay switch insert, 1-channel

Technical data

Rated voltage

AC 230 V ~

Mains frequency

50/60 Hz

Stand-by power depending on the cover

approx. 0.1 ... 0.5 W Switching current at 35 °C

Motor switching current

6 A Connected load at 35 °C

Incandescent lamps

2300 W

HV halogen lamps

2300 W

Electronic transformers

1500 W

Inductive transformers

1000 VA

HV LED lamps

typical 400 W

Fluorescent lamps non-compensated

1200 VA

Capacitive load

920 VA (115 µF) Connection screw terminals

single wire

1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²

stranded without ferrule

1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²

stranded with ferrule

1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²

Installation depth

24 mm

Ambient temperature

−25 ... +45 °C

Storage/transport temperature

−20 ... +70 °C

Number of valve drives

1 ... 10 Number of satellite units

Satellite insert 2-wire 1720 NE

unlimited

Satellite insert 3-wire 1723 NE

10

Push-buttons

unlimited

Run-on time

without, 1 min, 5 min, 30 min, 60 min
