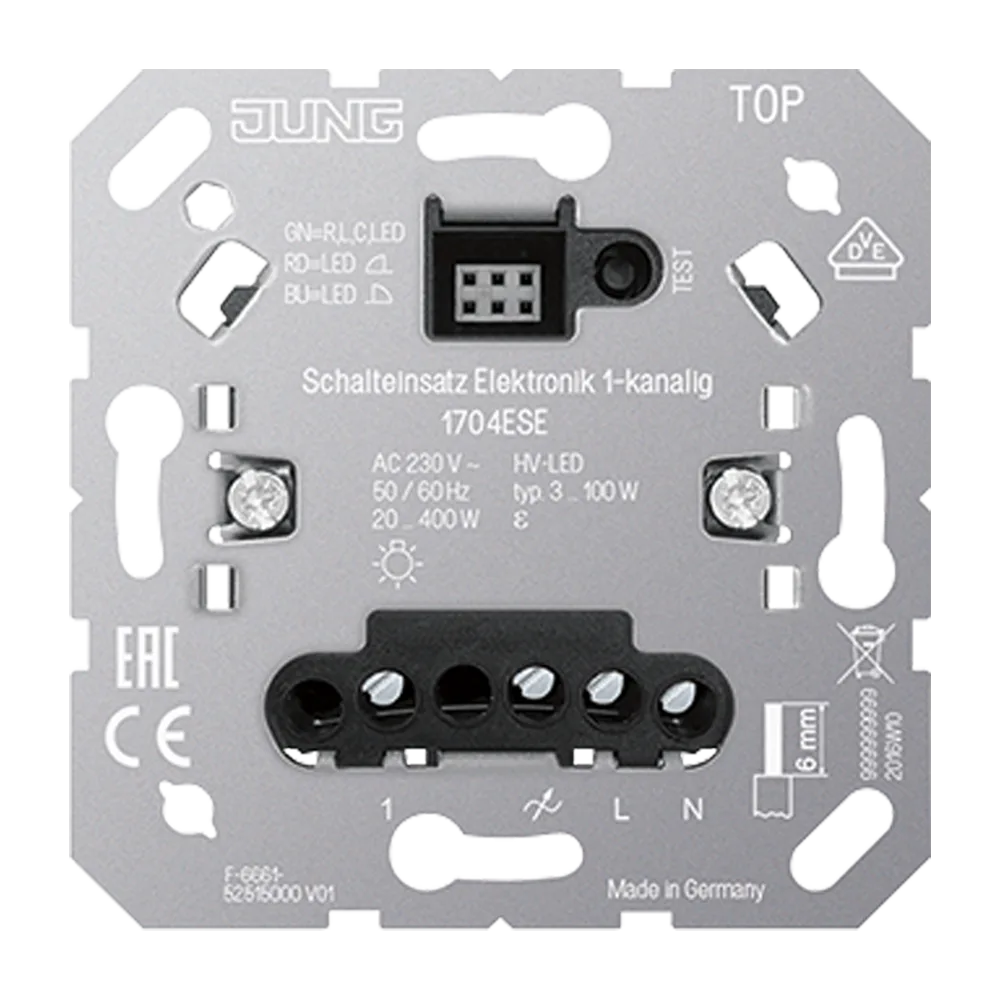

Name: Electronic switch insert, 1-channel
Brand: JUNG
SKU: 1704ESE
Price: 123895 KZT
Availability: InStock

Description & specifications

Electronic switch insert, 1-channel with satellite input BT .. 17182 .., BT .. 1791 .., BT 17361 .. for covers LB Management ref.-

Intended use

Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073

Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, switchable or dimmable HV-LED or compact fluorescent lamps

Product characteristics

Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, dimmable HV-LED or compact fluorescent lamps
Switch-on via bulb-preserving soft start
Connection of satellite units possible
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Test operation for functional test

Device is powered via line conductor and neutral conductor , therefore there is no leading edge phase control or trailing edge phase control

Device is powered via the line conductor and the connected load and therefore works in the leading edge phase control or trailing edge phase control principle
Automatic or manual setting of the operating mode suitable for the load
Display of the set operating mode by means of LED

Technical data

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Stand-by power: approx. 0.25 W
Power loss: approx. 4 W
Ambient temperature: −5 ... +45 °C Connected load at 25 °C
Incandescent lamps: 20 ... 400 W
HV halogen lamps: 20 ... 400 W
Electronic transformers: 20 ... 400 W
Electronic transformers with LV LED: 20 ... 100 W
Inductive transformers: 20 ... 400 VA
Inductive transformers with LV LED: 20 ... 100 VA
HV LED lamps: typical 3 ... 100 W
Compact fluorescent lamps: typical 3 ... 100 W When operating with neutral conductor or without neutral conductor in operating mode LED trailing edge phase control: Connection power for HV LED lamps typ. 3 ... 200 W, electronic transformers with LV LED typ. 20 ... 200 W.
Ohmic-capacitive: 20 ... 400 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 400 VA
Ohmic and HV LED: typical 3 ... 100 W
Ohmic and CFL: typical 3 ... 100 W Operation without neutral conductor in operating mode R,L,C,LED: Ohmic-inductive mixed load: maximum 50 % proportion of ohmic load. Otherwise incorrect calibration of the dimmer may result.
Operation without neutral conductor: Minimum load 50 W. Does not apply to loads with HV LED and compact fluorescent lamps. When using LED lamps that are not dimmable the neutral conductor must be connected. Connection screw terminals
single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
Number of valve drives: 1 ... 10 Number of satellite units
Satellite insert 2-wire 1720 NE: unlimited
Satellite insert 3-wire 1723 NE: 5
Push-buttons: unlimited
Total length of satellite cable: max. 100 m
Total length power cable: max. 100 m
