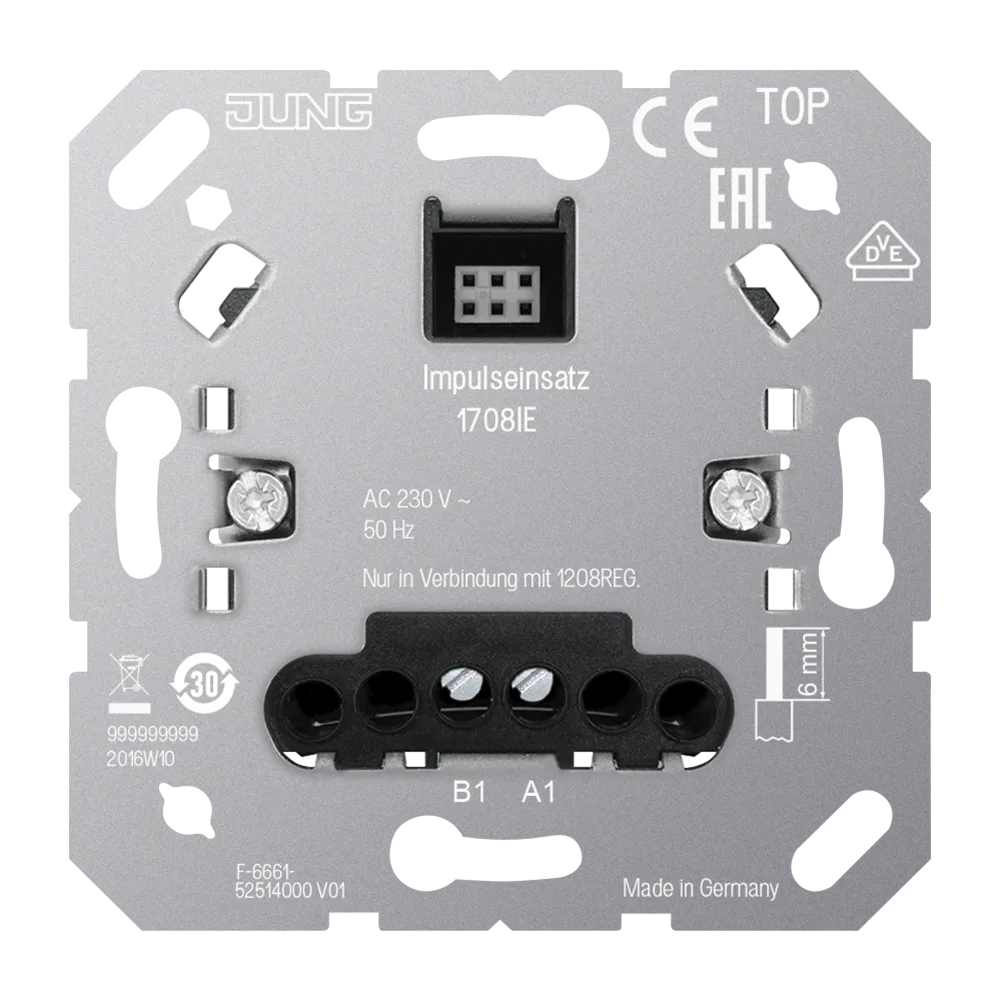

Pulse insert
Retail Price
92,345 ₸
Made to order from Germany
Characteristics
- Article number
- 1708 IE
- EAN/GTIN
- 4011377166967
Description & specifications
Pulse insert
Intended use
- Manual or automatic control of the power unit ref.-no. 1208 REG
- Operation with suitable cover
- Installation in flush box with dimensions according to DIN 49073
Product characteristics
- Operation in 3- or 4-conductor circuit
- Insert designed with 2-wire technology
Technical data
- Rated voltage
- AC 230 V ~
- Mains frequency
- 50 Hz
- Power consumption
- 0.25 ... 0.45 W
- Current consumption
- approx. 2.8 mA
- Ambient temperature
- −5 ... +45 °C
- Pulse duration
- approx. 60 ms
- Pulse interval
- approx. 8 s Connection screw terminals
- single wire
- 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
- stranded without ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
- stranded with ferrule
- 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
