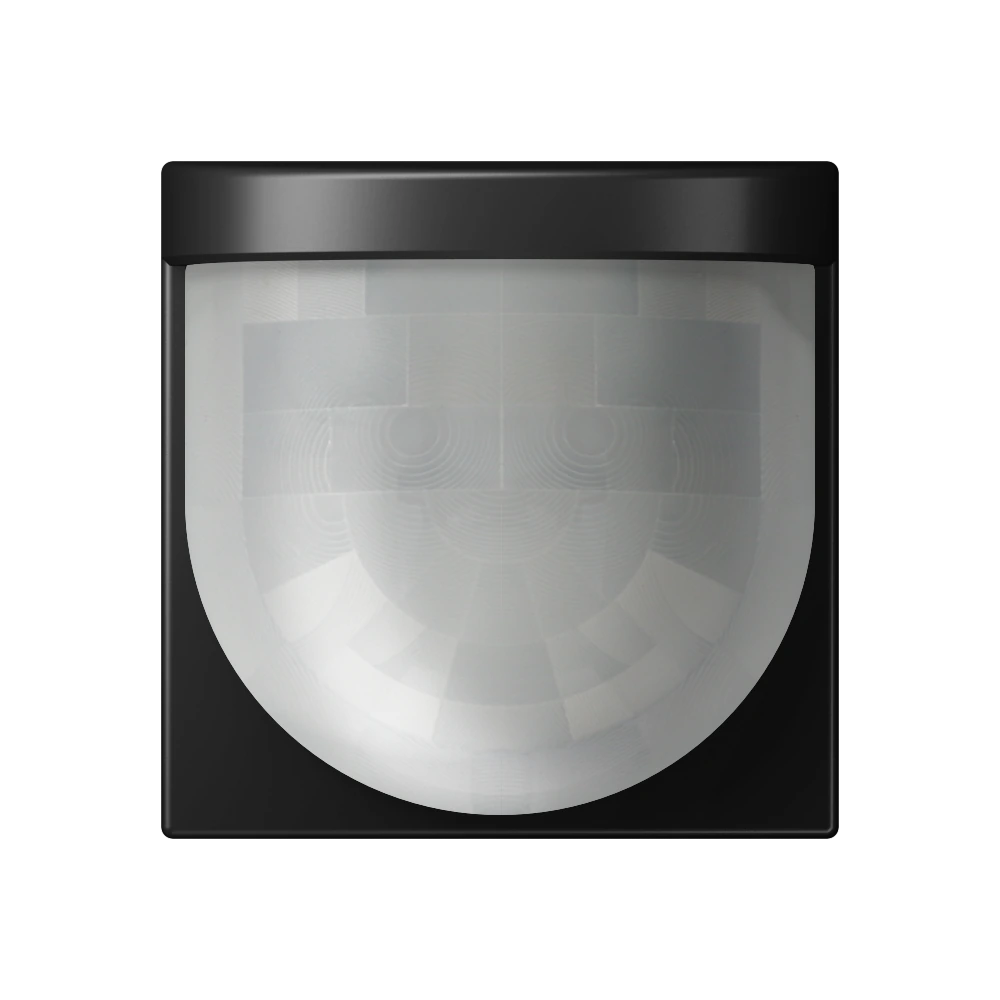

LB Management motion detector 2.2 m
Retail Price
105,120 ₸
Made to order from Germany
Characteristics
- Article number
- A 17280 SWM
- EAN/GTIN
- 4011377205536
- Colour
- matt graphite black
- Material
- thermoplastic lacquered
Description & specifications
LB Management motion detector 2.2 m Sensitivity and brightness threshold adjustable 1713 DSTE, 1723 NE, 1708 IE Degree of protection IP44 is ensured with sealing kit ref.-no. AS A 50 DS and "IP44 frame" of the respective design range. IP44 suitable only for interiors
Intended use
Product characteristics
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
- Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
- Brightness threshold adjustable
- Sensitivity selectable
- Fixed run-on time
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
- Dimming light via satellite unit, with dimmer insert
Technical data
- Ambient temperature
- −20 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Brightness setting
- approx. 5 ... 1,000 lx (and daytime operation)
- Sensitivity
- 25, 50, 75, 100 %
- Run-on time
- approx. 2 min
- Mounting height
- 1.10 / 2.20 m
- Detection angle
- 180° Detection range (2.2 m mounting height)
- Sensitivity 25 %
- max. 7 m
- Sensitivity 50 %
- max. 8 m
- Sensitivity 75 %
- max. 9 m
- Sensitivity 100 %
- max. 10 m matt lacquered
- Colour
- 02.06.2026 1 of 2 matt graphite black
Compatible Products
18Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (8)
1701PSE
Relay switch insert with floating contact, 1-channel
125,190 ₸
1701SE
Relay switch insert, 1-channel
88,905 ₸
1702SE
Relay switch insert, 2-channel
200,385 ₸
1704ESE
Electronic switch insert, 1-channel
123,895 ₸
1710DE
Standard touch dimmer insert LED
121,250 ₸
1711DE
Universal touch dimmer insert LED
143,500 ₸
ASA50DS
Sealing kit for motion detector 2.2 m · IP44
3,940 ₸
1708IE
Pulse insert
92,345 ₸
Cover plates (2)
Frames (5)
ASA50DS
Sealing kit for motion detector 2.2 m · IP44
3,940 ₸
A5581BFWW
Frame for horizontal and vertical installation
4,180 ₸
AC581WW
Frame for horizontal and vertical installation
3,055 ₸
AF581BFWW
Frame for horizontal and vertical installation
5,025 ₸
AV581GLMWW
Glass frame for horizontal and vertical installation
62,890 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.026 KG
- Length
- 54 MM
- Height
- 46 MM
- Width
- 54 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.064 KG
- Length
- 84 MM
- Height
- 70 MM
- Width
- 82 MM
Outer Carton
- Packaging unit
- 10 pc.
- Weight
- 0.752 KG
- Length
- 360 MM
- Height
- 88 MM
- Width
- 182 MM
