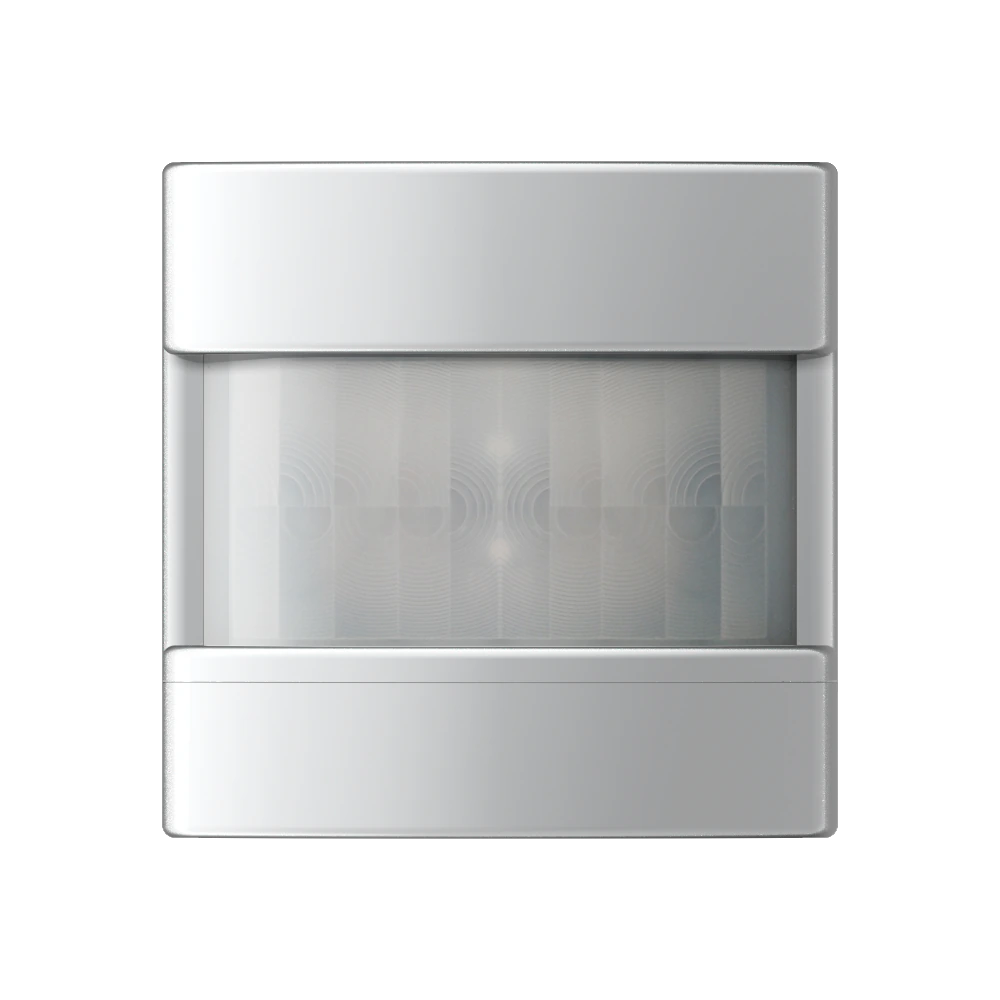

LB Management motion detector 1.1 m
Retail Price
105,120 ₸
Made to order from Germany
Characteristics
- Article number
- A 17182 AL
- EAN/GTIN
- 4011377213029
- Colour
- aluminium
- Material
- thermoplastic lacquered
Description & specifications
LB Management motion detector 1.1 m Run-on time and brightness threshold adjustable 1713 DSTE, 1723 NE, 1708 IE
Intended use
Product characteristics
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
- Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
- Dimming light via satellite unit, with dimmer insert
- Screen for limiting the detection area
- Fixed sensitivity
- Run-on time adjustable
- Brightness threshold adjustable
Technical data
- Ambient temperature
- −20 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Brightness setting
- approx. 5 ... 1,000 lx (and daytime operation)
- Run-on time
- approx. 10 s ... 30 min
- Mounting height
- 1.10 m
- Detection angle
- 180° Thermoplastic (breakproof) lacquered
- Colour
- aluminium
- Material
- thermoplastic lacquered
Compatible Products
12Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Inserts (7)
1701PSE
Relay switch insert with floating contact, 1-channel
125,190 ₸
1701SE
Relay switch insert, 1-channel
88,905 ₸
1702SE
Relay switch insert, 2-channel
200,385 ₸
1704ESE
Electronic switch insert, 1-channel
123,895 ₸
1710DE
Standard touch dimmer insert LED
121,250 ₸
1711DE
Universal touch dimmer insert LED
143,500 ₸
1708IE
Pulse insert
92,345 ₸
Cover plates (2)
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.07 KG
- Length
- 84 MM
- Height
- 72 MM
- Width
- 84 MM
Carton
- Packaging unit
- 10 pc.
- Weight
- 0.826 KG
- Length
- 362 MM
- Height
- 90 MM
- Width
- 184 MM
