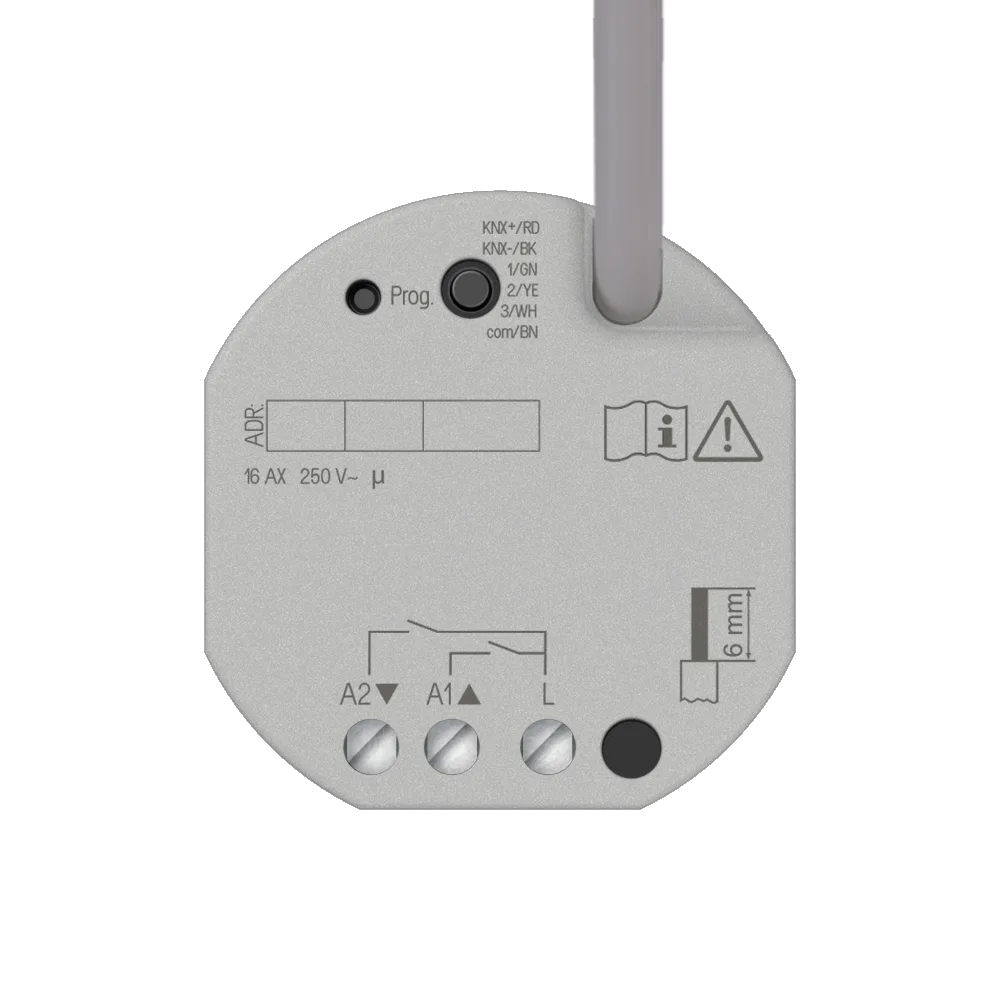

Switch actuator, 2-gang / blinds actuator, 1-gang

Name: Switch actuator, 2-gang / blinds actuator, 1-gang
Brand: JUNG
SKU: 230021SU
Price: 241000 KZT
Availability: BackOrder

Retail Price

241,000 ₸

Made to order from Germany

Characteristics

Article number: 23002 1S U
EAN/GTIN: 4011377194847

Description & specifications

KNX switch actuator, 2-gang KNX blinds actuator, 1-gang

Intended use

LES 01) at inputs 1...3 FF NTC)

Product characteristics

Characteristics switching operation

Characteristics blinds operation

Characteristics satellite input

Logic function characteristics

Switching electrical loads via relay contacts with common reference potential
Switching of electrically driven blinds, shutters and awnings
Reading in switching states of installation switches or push-buttons and other floating contacts at inputs 1...3
Installation in flush box with dimensions according to DIN 49073
Output can be operated via KNX telegrams or satellite inputs
Three extension inputs for connecting floating contacts or dew/leakage sensors. NTC temperature sensor can be connected to input 3.
Supply via bus, no additional power supply necessary
KNX Data Secure compatible with ETS 5.7.3 or higher
Can be updated with the ETS Service App
Operation as 1-way NO or 1-way NC contacts
Feedback function
Logic operation and forced guidance
Central switching function with collective feedback
Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch- off warning
Scene function
Operating hours counter
Suitable for 110 ... 230 V AC motors
Operating modes ‘Blind with slats’, ‘Shutter/awning’, ‘Ventilation flap/skylight’
Blind/shutter position directly controllable
Slat position directly controllable
Feedback of movement status, blind/shutter position and slat position
Forced position through higher-level controller
Safety function: rain alarm, frost alarm, 3 independent wind alarms
Sun protection function with auto Heating/Cooling
Disabling function (lock-out protection)
Scene function
Operating functions switching, dimming (including colour temperature), controlling blinds, value transmitter (1 byte, 2 byte, 3 byte and 6 byte incl. RGBW und colour temperature presets), scene extension etc.
Disabling function
Debounce time adjustable
Logic gates
Transformer (conversion)
Disabling element
Comparator
Limit value switch

Technical data

Ambient temperature: −5 ... +45 °C
Storage/transport temperature: −25 ... +70 °C
Dimensions (W x H x D): 48 x 50 x 28 mm
KNX medium: TP 256
Commissioning mode: S-mode
Rated voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: 5 ... 18 mA
Connection, KNX: connection terminal to control cable Outputs
Connection mode: screw terminals
Switching voltage: AC 250 V ~
Switching current per device: 16 A
Fluorescent lamps: 16 AX
Switch-on current 200 µs: max. 800 A
Switch-on current 20 ms: max. 165 A Connected load
Ohmic load: 2500 W
Capacitive load: max. 16 A (140 µF)
Motors: 1380 VA
Incandescent lamps: 2300 W
HV halogen lamps: 2300 W
HV LED lamps: max. 400 W LV halogen lamps with
electronic transformers: 1500 W
inductive transformers: 1200 VA Compact fluorescent lamps
non-compensated: 1000 W
parallel compensated: 1160 W / 140 µF Reduction of switching current per unit (referred to 16 A)
for every 5 °C exceededing 35 °C: −10 % for installation into wooden or hollow
walls: −15 %
for installation into multiple combinations: −20 % Connection
single wire: 1 x 0.5 ... 4 mm²
stranded without ferrule: 1 x 0.5 ... 4 mm²
stranded with ferrule: 1 x 0.5 ... 2.5 mm² Inputs
Control cable: YY6x0.6 (preterminated)
Input type: floating
Number: 3
Total length of satellite cable: max. 10 m
Cable type: J-Y(St)Y
Poll voltage satellite inputs: approx. 5 V
