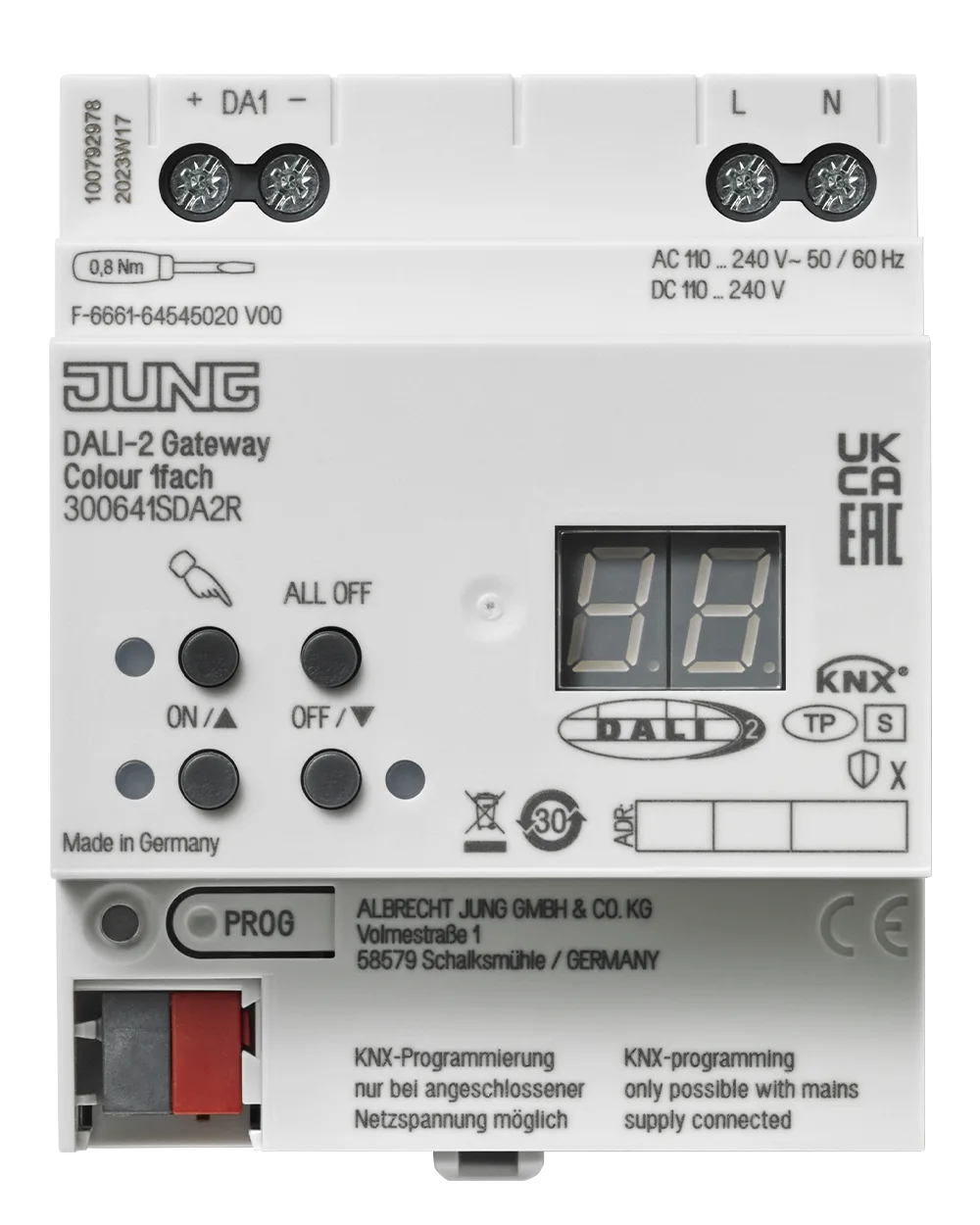

DALI-2 gateway Colour 1-gang

KNX DALI-2 gateway Colour 1-gang rail mounting device, 4 rail units

Intended use

Product characteristics

Device Type 8 acc. to IEC 62386-209

As of device version V01 or software version V2.0.8:

• Controlling of luminaires and other applications with DALI operating device in KNX installations e.g. electronic ballast
• Mounting on DIN rail according to EN 60715 in distribution box
• DALI-2 certified
• Control of up to 64 DALI devices in up to 32 groups
• Setting of colour temperature or light colour (RGB, RGBW) for luminaires with DALI
• Short-circuit, overload and overvoltage protected
• Operating hours counter
• Automatic colour circle pass or brightness pass
• HCL mode (Human Centric Lighting), automatic daytime colour temperature gradient
• CT (Colour Transition) mode, automatic day colour gradient
• Suitable for operation with DC voltage of emergency lighting systems
• Individual, group or central addressing
• 16 light scenes per DALI system
• Read out DALI device state via KNX, e.g. brightness or luminaire error
• Manual operation of the DALI groups, individual devices or central (broadcast) separately for each DALI system
• Forced guidance of disabling function
• Feedback of switching state and brightness value in bus and manual operation
• Collective feedback
• Central switching and dimming function
• Disabling function for each DALI group or each individual device
• Separate ON and OFF delay
• Staircase lighting timer with switch-off warning
• Online or offline project design of the DALI devices with ETS-DCA
• Standby switch-off of the DALI devices
• Replacement of a single DALI device of the same type, during operation, possible without software
• KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
• Can be updated with the ETS Service App
• Multi-master capable: DALI-2 sensors can be used as application controllers
• DALI-2 sensors are supported as input devices in instance mode
