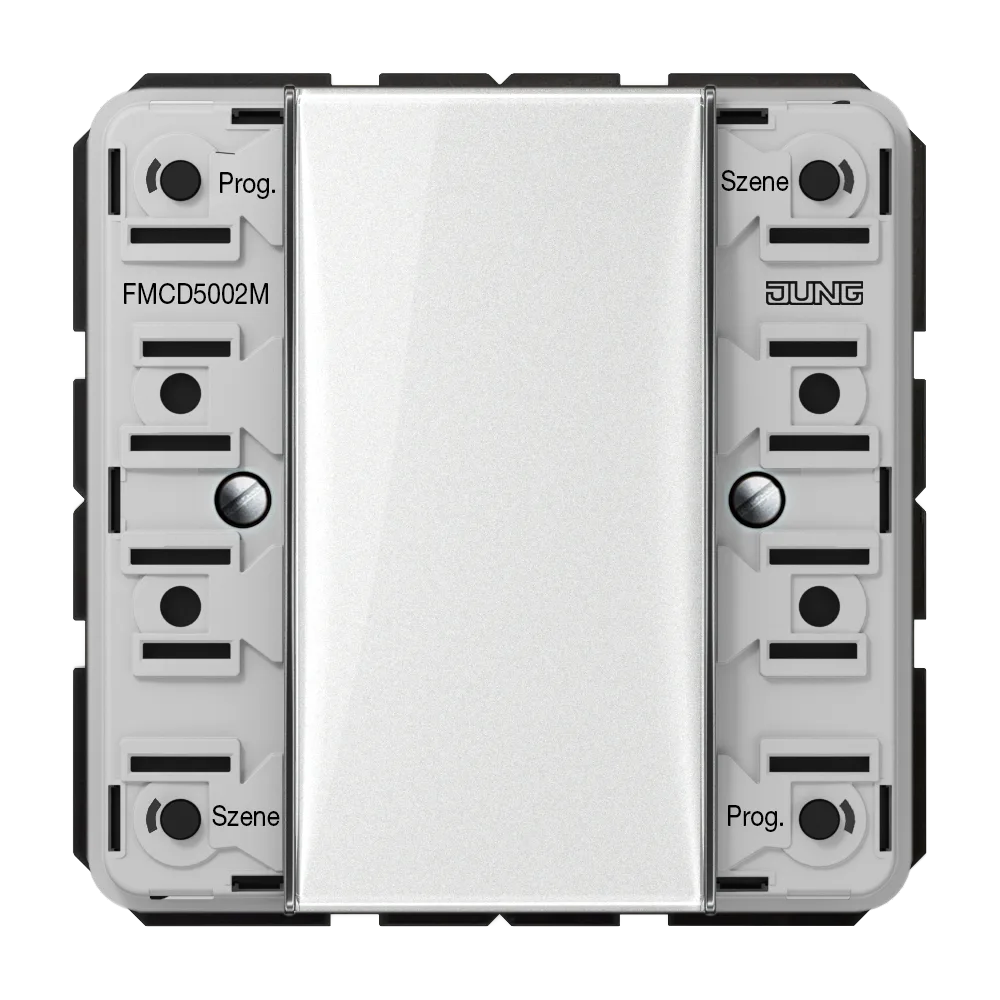

eNet radio transmitter module 2-gang
Retail Price
150,370 ₸
Made to order from Germany
Characteristics
- Article number
- FM CD 5002 M
- EAN/GTIN
- 4011377147478
- xFach Modul
- 2-gang
Description & specifications
including mounting plate, adhesive film and fastening screw
Intended use
Product characteristics
- Radio sensor for transmission of switching, dimming, blind movement and scene commands
- Operation with radio actuators from the eNet system
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
- Two adjacent buttons each belong to one channel
- Display of the actuator status for status poll by a green LED per channel
- Display of the transmission status by a red LED
- Switch-on brightness of dimmer actuators can be saved
- Battery-powered device (battery compartment accessible from front)
- Signalling of transmission errors can be switched off
- Scene All On
- Operating locks
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
Technical data
- Rated voltage
- DC 3 V
- Battery type
- 1 x lithium CR 2450N (included)
- Ambient temperature
- −5 ... +45 °C
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmitting power
- max. 20 mW
- Transmission range in free field
- typical 100 m
- Receiver category
- 2
Compatible Products
18Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Cover plates (13)
A402TSA
Cover kit 2-gang, complete · for KNX bus modules
15,025 ₸
A402TSAWW
Cover kit 2-gang, complete · for KNX bus modules
15,025 ₸
LS402TSA
Cover kit 2-gang, complete · for KNX bus modules
17,795 ₸
LS402TSAWW
Cover kit 2-gang, complete · for KNX bus modules
17,795 ₸
AL2402TSA
Cover kit 2-gang, complete · for KNX bus modules
33,275 ₸
ES2402TSA
Cover kit 2-gang, complete · for KNX bus modules
33,275 ₸
LC402TSA201
Cover kit 2-gang, complete · for KNX bus modules
100,185 ₸
ME2402TSAAT
Cover kit 2-gang, complete · for KNX bus modules
49,930 ₸
402TSAT
Transparent cover kit 2-gang · for KNX bus modules
11,915 ₸
A402TSAP
Cover 2-gang with symbols · for KNX bus modules
10,470 ₸
- Cover 2-gang with symbols · for KNX bus modules
- Cover 2-gang with symbols · for KNX bus modules
- Cover 2-gang with symbols · for KNX bus modules
Showing 10 of 13
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 0.091 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 0.091 KG
- Length
- 82 MM
- Height
- 45 MM
- Width
- 82 MM
