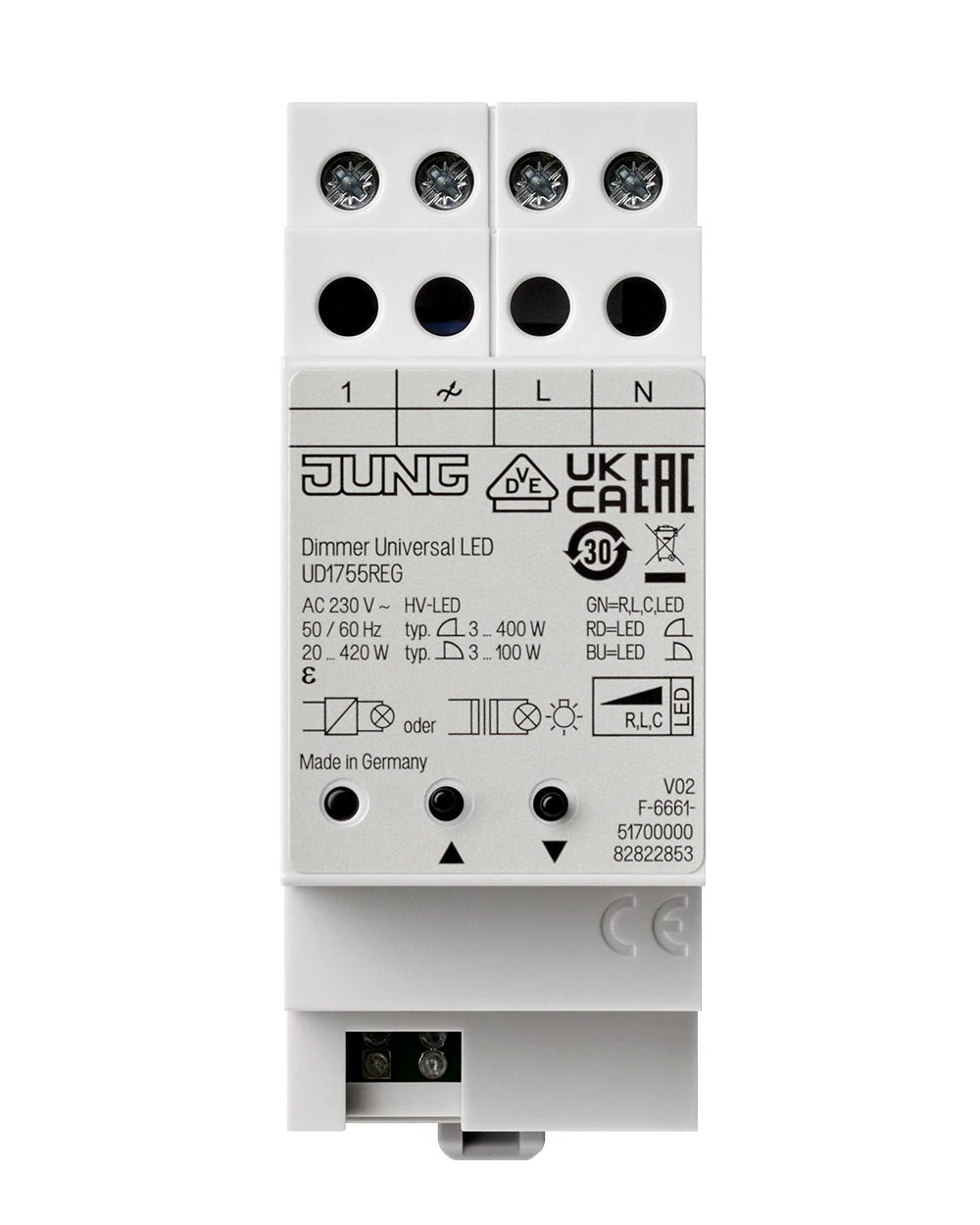

Universal dimmer LED

Name: Universal dimmer LED
Brand: JUNG
SKU: UD1755REG
Price: 239045 KZT
Availability: BackOrder

Retail Price

239,045 ₸

Made to order from Germany

Characteristics

Universal dimmer LED rail mounting device, 2 rail units

Intended use

Product characteristics

Switching and dimming of lighting
Mounting on DIN rail according to EN 60715 in distribution box
Operation takes place using the buttons, 2- or 3-wire satellite insert, rotary satellite insert or push-button with 1-way NO contact
Device works according to the leading edge phase control or trailing edge phase control principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode by means of LED
Switch-on via bulb-preserving soft start
Switch-on with last brightness or saved switch-on brightness
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Stand-by power: approx. 0.3 W
Power loss: approx. 3.8 W
Ambient temperature: −5 ... +45 °C Connected load at 25 °C
Incandescent lamps: 20 ... 420 W
HV halogen lamps: 20 ... 420 W
Electronic transformers: 20 ... 420 W
Electronic transformers with LV LED: 20 ... 100 W
Inductive transformers: 20 ... 420 VA
Inductive transformers with LV LED: 20 ... 100 VA
Dimmable HV LED lamps: typical 3 ... 100 W
Dimmable compact fluorescent lamps: typical 3 ... 100 W Operating mode LED trailing edge phase control: Rated power for HV LED lamps, typ. 3 ... 400 W, electronic transformers with LV LED typ. 20 ... 200 W.
Ohmic-capacitive: 20 ... 420 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 420 VA
Ohmic and HV LED: typical 3 ... 100 W
Ohmic and CFL: typical 3 ... 100 W
Amplifiers: see instructions for amplifier Connection screw terminals
single wire: 1 x 0.75 ... 4.0 mm²2 x 0.75 ... 2.5 mm²
stranded without ferrule: 1 x 0.75 ... 4.0 mm²2 x 0.75 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 2.5 mm² Number of satellite units
Satellite insert 2-wire 1720 NE: unlimited
Satellite insert 3-wire 1723 NE: 10

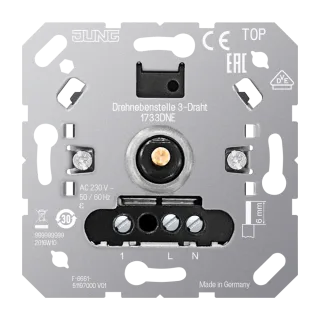

Rotary satellite insert 3-wire 1733 DNE: 10
Unlit installation buttons: unlimited
Total length of satellite cable: max. 100 m
Total length power cable: max. 100 m
Mounting width: 36 mm (2 rail units)
Version: 1-channel
