Satellite insert 3-wire, power supply — JUNG Mechanisms, Ivory, art. 1723NE — Mechanisms · Ivory · 1723NE

Mechanisms·1723NE

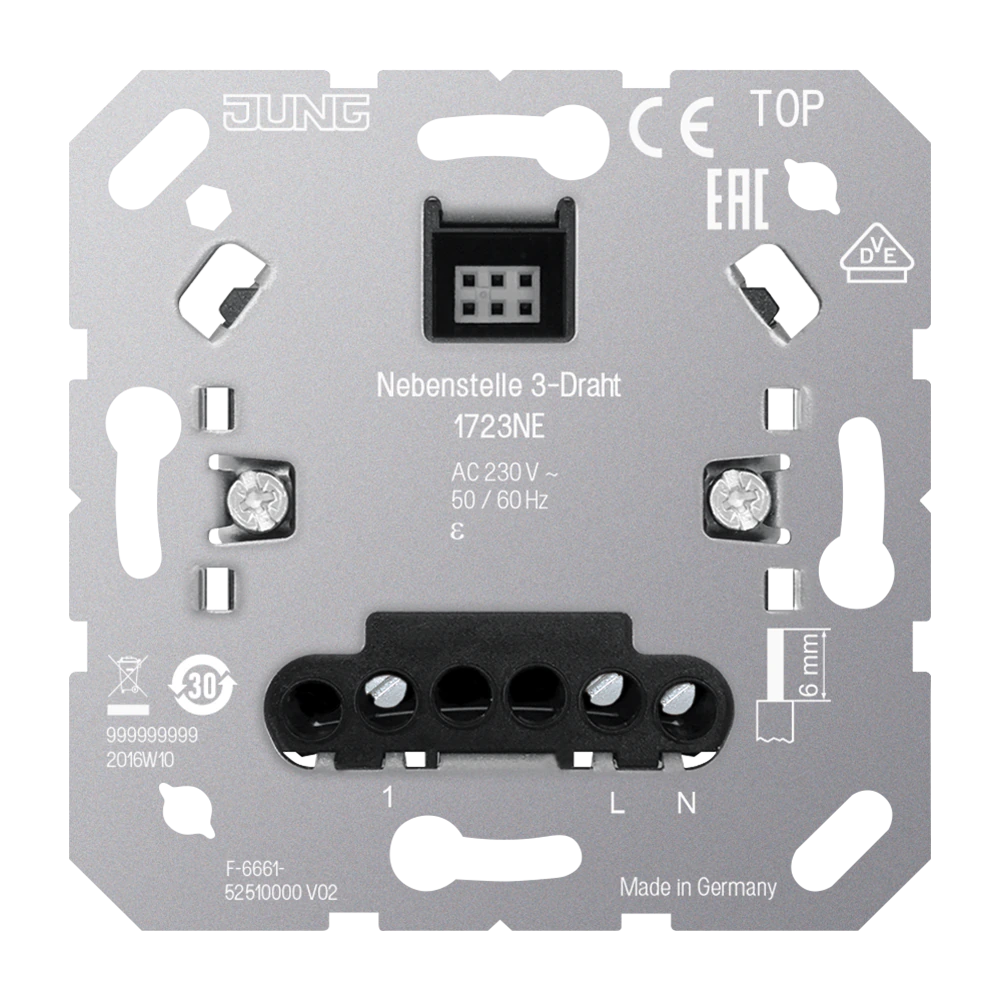

Satellite insert 3-wire, power supply

Retail Price

54,730 ₸

In stock in Almaty · 2 pcs

Characteristics

Article number: 1723 NE
EAN/GTIN: 4011377166950

Description & specifications

Satellite insert 3-wire, power supply BT .. 17182 .., BT 17361 ..

Intended use

Satellite operation of suitable inserts
Satellite for extending the detection field of motion and presence detectors
Central control of multiple main devices
Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073
Neutral conductor required

Technical data

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Ambient temperature: −20 ... +45 °C Connection screw terminals
single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm²
Total length of satellite cable: max. 100 m

Technical datasheet

Official JUNG document · PDF · 1723NE

Russian English

Compatible Products

1253

Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.

Inserts (4)

Relay switch insert, 1-channel

1701SE

Relay switch insert, 1-channel

88,905 ₸

Relay switch insert with floating contact, 1-channel

1701PSE

Relay switch insert with floating contact, 1-channel

125,190 ₸

Relay switch insert, 2-channel

1702SE

Relay switch insert, 2-channel

200,385 ₸

Electronic switch insert, 1-channel

1704ESE

Electronic switch insert, 1-channel

123,895 ₸

Cover plates (210/1237)

Color

Relay switch insert, 2-channel

1702SE

Relay switch insert, 2-channel

200,385 ₸

Universal touch dimmer insert LED

1711DE

Universal touch dimmer insert LED

143,500 ₸

Universal 2-gang touch dimmer insert LED

1712DE

Universal 2-gang touch dimmer insert LED

224,980 ₸

LB Management motion detector 1.1 m

A17180

LB Management motion detector 1.1 m

95,760 ₸

LB Management motion detector 1.1 m

A17180AL

LB Management motion detector 1.1 m

105,120 ₸

LB Management motion detector 1.1 m

A17180ANM

LB Management motion detector 1.1 m

101,085 ₸

LB Management motion detector 1.1 m

A17180CH

LB Management motion detector 1.1 m

105,120 ₸

LB Management motion detector 1.1 m

A17180MO

LB Management motion detector 1.1 m

105,120 ₸

LB Management motion detector 1.1 m

A17180SW

LB Management motion detector 1.1 m

101,085 ₸

LB Management motion detector 1.1 m

A17180SWM

LB Management motion detector 1.1 m

105,120 ₸

Showing 10 of 210

Accessories (12)

Color

LB Management push-button 1-gang

A1700SW

LB Management push-button 1-gang

39,370 ₸

LB Management push-button 1-gang

LS1700SW

LB Management push-button 1-gang

44,265 ₸

LB Management push-button 1-gang

AS1700

LB Management push-button 1-gang

35,770 ₸

LB Management push-button 2-gang

A1702SW

LB Management push-button 2-gang

53,560 ₸

LB Management push-button 2-gang

LS1702SW

LB Management push-button 2-gang

57,130 ₸

LB Management timer display

A1750DSW

LB Management timer display

133,285 ₸

LB Management timer display

LS1750DSW

LB Management timer display

134,700 ₸

Power DALI push-button controller TW

1713DSTE

Power DALI push-button controller TW

210,325 ₸

Universal dimmer LED, built-in

1724DEB

Universal dimmer LED, built-in

132,760 ₸

Dimmer mini universal LED

1724DM

Dimmer mini universal LED

123,125 ₸

Showing 10 of 12

Logistics

Single Item

Packaging unit: 1 pc.
Weight: 0.086 KG
Length: 82 MM
Height: 45 MM
Width: 82 MM

Carton

Packaging unit: 10 pc.
Weight: 0.958 KG
Length: 235 MM
Height: 92 MM
Width: 175 MM
