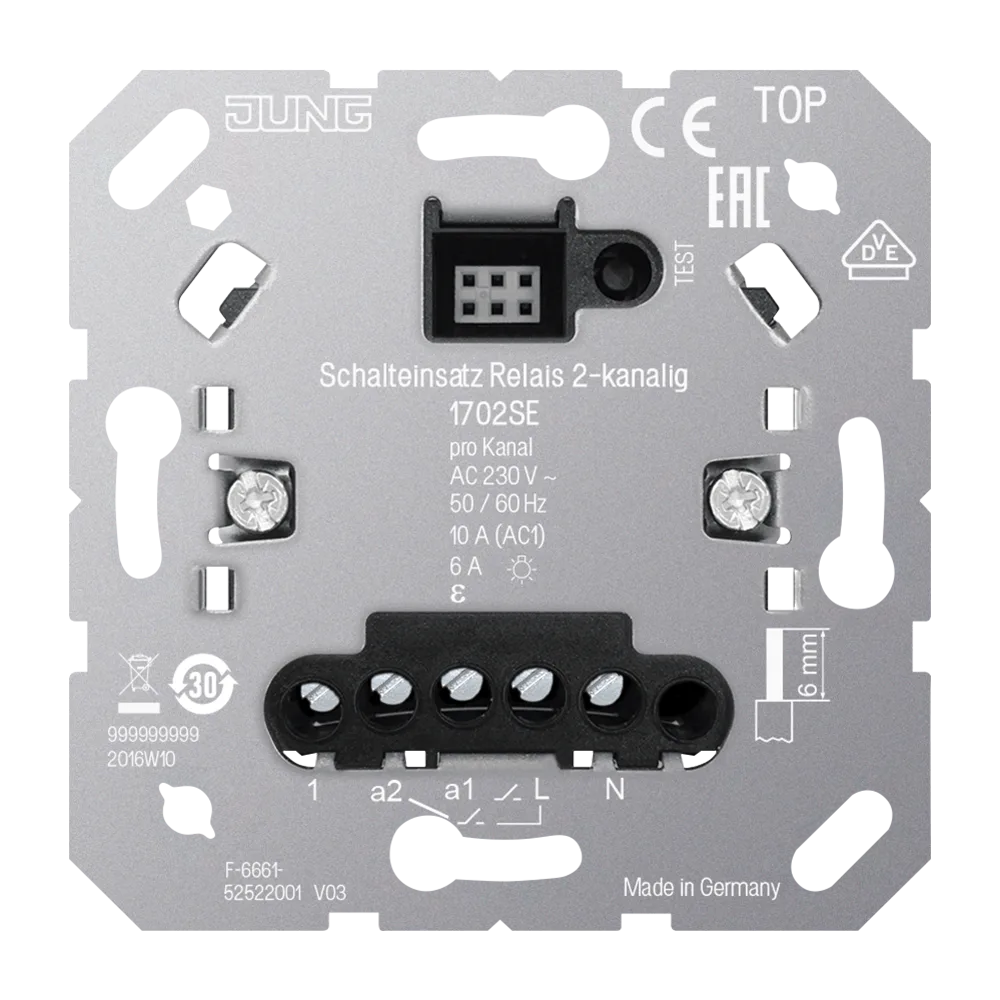

Name: Relay switch insert, 2-channel
Brand: JUNG
SKU: 1702SE
Price: 200385 KZT
Availability: BackOrder

Description & specifications

Relay switch insert, 2-channel with satellite input BT .. 17182 .., BT .. 1791 .., BT 17361 ..

Intended use

Product characteristics

Management timer display, LB Management motion detector:

Switching of lighting and motors
Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073
Connection of satellite units possible
Test operation for functional test
Two independent outputs
Time function for output a2 adjustable
Output a2 switches depending on output a1 e.g. to switch on ventilation, depending on the lighting, and switch it off with a delay.
Switch-on delay of output a2 adjustable
Switch-off delay of output a2 adjustable
Two independent outputs
Output a2 switches depending on output a1 e.g. to switch on ventilation, depending on the lighting, and switch it off with a delay.

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Stand-by power depending on the cover: approx. 0.1 ... 0.5 W
Ambient temperature: −25 ... +45 °C
Storage/transport temperature: −20 ... +70 °C
Switching current per device: 16 A Switching current per channel for 25 °C
Ohmic: 10 A (AC1)
Motors: 3 A (cos = 0.68) Connected load per channel for 25 °C
Incandescent lamps: 1500 W
HV halogen lamps: 1500 W
Electronic transformers: 1000 W
Inductive transformers: 625 VA
HV LED lamps: typical 400 W
Compact fluorescent lamps: typical 500 W
Fluorescent lamps non-compensated: 750 VA
Capacitive load: 580 VA (70 µF) Connection screw terminals
single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm² Number of satellite units
Satellite insert 2-wire 1720 NE: unlimited
Satellite insert 3-wire 1723 NE: 10
Rotary satellite insert 3-wire 1733 DNE: 10
Push-buttons: unlimited
Switch-off delay: without, 1 min, 5 min, 30 min, 60 min
Switch-on delay: without, 3 min
