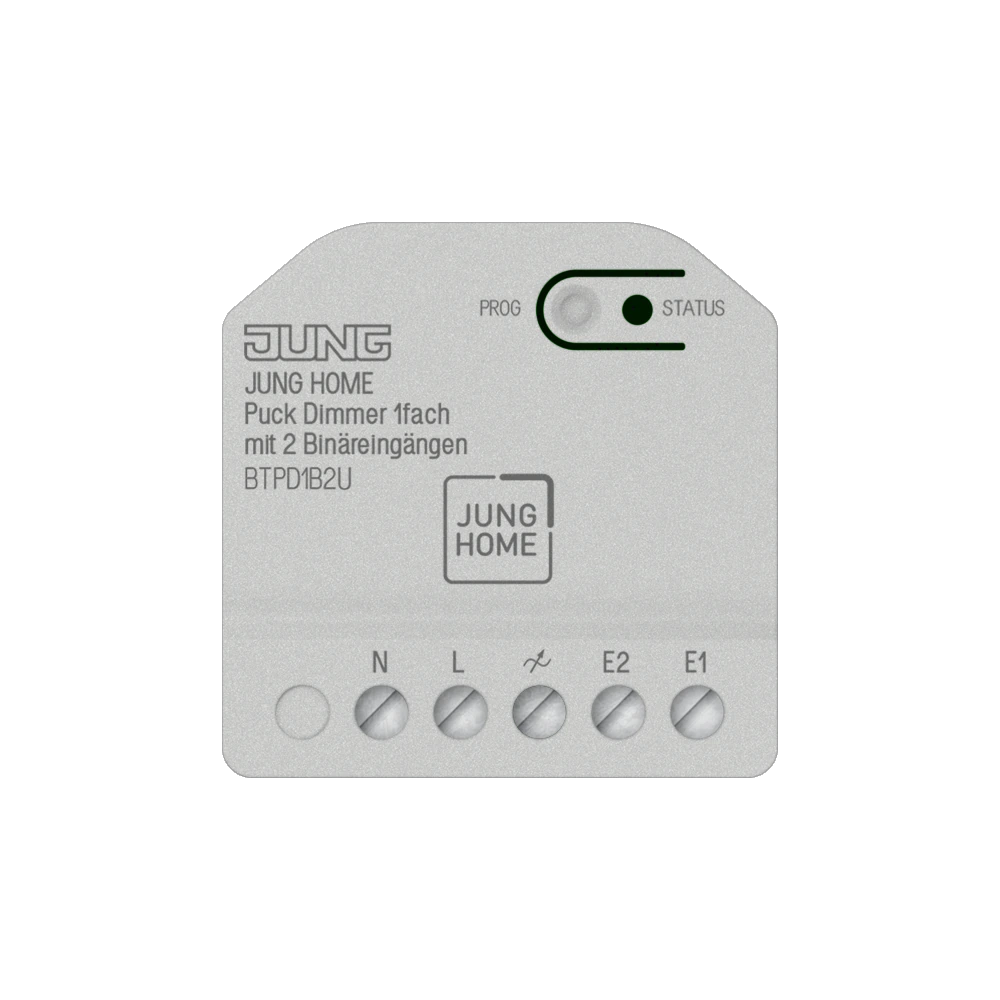

JUNG HOME Puck dimmer 1-gang with 2 binary inputs

Name: JUNG HOME Puck dimmer 1-gang with 2 binary inputs
Brand: JUNG
SKU: BTPD1B2U
Price: 119465 KZT
Availability: BackOrder

Retail Price

119,465 ₸

Made to order from Germany

Characteristics

Article number: BT P D1 B2 U
EAN/GTIN: 4011377360044
Installation depth: 18 mm (20 mm in the terminal area)

Description & specifications

JUNG HOME Puck dimmer 1-gang with 2 binary inputs Available December 2025

Intended use

JUNG HOME sensors and JUNG HOME app

JUNG HOME motion or presence detector, JUNG HOME room thermostat

Product characteristics

(smartphone or tablet) via Bluetooth®

Function if JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button, JUNG HOME motion or presence detector, or JUNG HOME room

Manual switching and dimming of lighting
Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button,
Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
Automatic switching and dimming of lighting. Requirement: at least one of the following devices is in the project (Bluetooth® Mesh network): JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button or
Wireless linking with JUNG HOME system devices
Installation in flush box with dimensions according to DIN 49073
Commissioning and operation using JUNG HOME app with mobile device
Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
Independent use of actuator functions and binary inputs
Multi-coloured status indicator and Prog button for commissioning
Disabling the Prog button
Including the load in areas (groups), central functions and scenes
Staircase lighting function (automatic switch-off) with switch-off warning
Run-on time, switch-on delay, switch-off delay
Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
Wind alarm via connection of weather sensors to binary inputs
Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
Maximum and minimum brightness adjustable
Switch-on with last brightness or fixed switch-on brightness
Device works according to the leading edge phase control or trailing edge phase control principle
Setting of the dimming principle suitable for the load via the JUNG HOME App
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Bluetooth® Mesh for fully encrypted wireless communication and repeater function
Can be updated using JUNG HOME app thermostat is included in the Bluetooth® Mesh network (project).
Up to 16 time programs
Time programs with sunrise or sunset (astro timer)
Activate/deactivate automatic functions using the JUNG HOME app
Automatic date and time update when connecting with mobile device

Technical data

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Input voltage: AC 230 V ~
Stand-by power: max. 0.35 W
Power loss: max. 2.3 W
Ambient temperature: −5 ... +45 °C
Storage temperature: −5 ... +45 °C
Transport temperature: −20 ... +70 °C
Relative humidity: 20 ... 70 % (no condensation) Connected load at 35 °C Trailing edge phase control
Incandescent lamps: 0 ... 225 W
HV halogen lamps: 0 ... 225 W
lamps: 0 ... 300 W
Dimmable HV LED lamps: typical 0 ... 80 W
Electronic LED ballast with LED lamps: 0 ... 80 W Reduction of load
for every 5 °C exceededing 35 °C: −10 % for installation into wooden or hollow
walls: −15 %
for installation into multiple combinations: −20 % Cable length
Output cable: max. 100 m
Binary input: max. 50 m
Dimensions (W x H x D): 46 x 46 x 20 mm
Installation depth: 18 mm (20 mm in the terminal area)
Radio frequency: 2402.0 ... 2480.0 MHz
Transmitting power: max. 10 mW (class 1.5) Transmission range
in buildings: approx. 30 m
