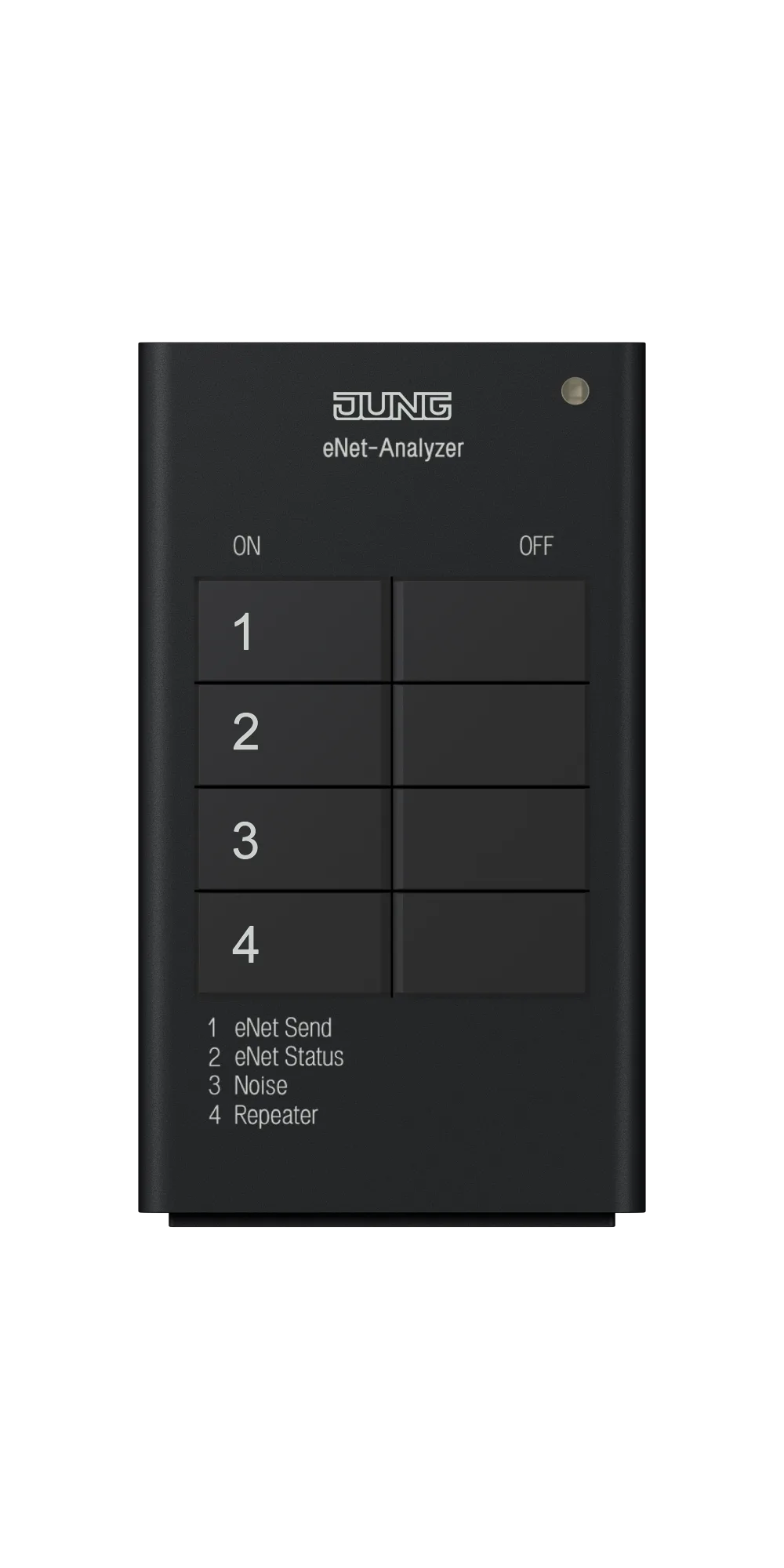

eNet radio signal quality meter
Retail Price
98,490 ₸
Made to order from Germany
Characteristics
- Article number
- FM DT
- EAN/GTIN
- 4011377115385
Description & specifications
Not suitable for encrypted radio transmission. Only with eNet server software up to version 1.4. Product characteristics
- Display of the signal quality of a selected eNet device using LEDs
- Display of the signal quality of status messages using LEDs
- Display of radio signals of non-eNet radio transmitters in the 868.0 ... 868.6 MHz frequency band using LEDs
- Switch-on, switch-off of the repeater functions of network-operated actuators, transmitters and energy sensors
- Battery operation with one included lithium button cell (CR 2450N)
- Devices switches off after 5 minutes without actuation
Technical data
- Rated voltage
- DC 3 V
- Battery type
- 1 x lithium CR 2450N (included)
- Ambient temperature
- −5 ... +45 °C
- Radio frequency
- 868.0 ... 868.6 MHz
- Transmission range in free field
- max. 100 m
- Transmitting power
- max. 20 mW
- Receiver category
- 2
Compatible Products
5Frames, rockers, sockets and covers that fit this article. Filter by colour, range or gang count.
Accessories (5)
FMASPF10UP
eNet radio switch/push-button actuator with floating contact, 1-gang mini
137,845 ₸
FMAS10UP
eNet radio switch/push-button actuator 1-gang mini
137,845 ₸
FMAS26UP
eNet radio switch/push-button actuator 2-gang mini
164,105 ₸
FMUD20250UP
eNet radio dimming actuator 1-gang mini
183,810 ₸
FMJ50700UP
eNet radio blinds actuator 1-gang mini
164,105 ₸
Logistics
Single Item
- Packaging unit
- 1 pc.
- Weight
- 86 G
- Length
- 95 MM
- Height
- 40 MM
- Width
- 75 MM
Carton
- Packaging unit
- 1 pc.
- Weight
- 86 G
- Length
- 95 MM
- Height
- 40 MM
- Width
- 75 MM
