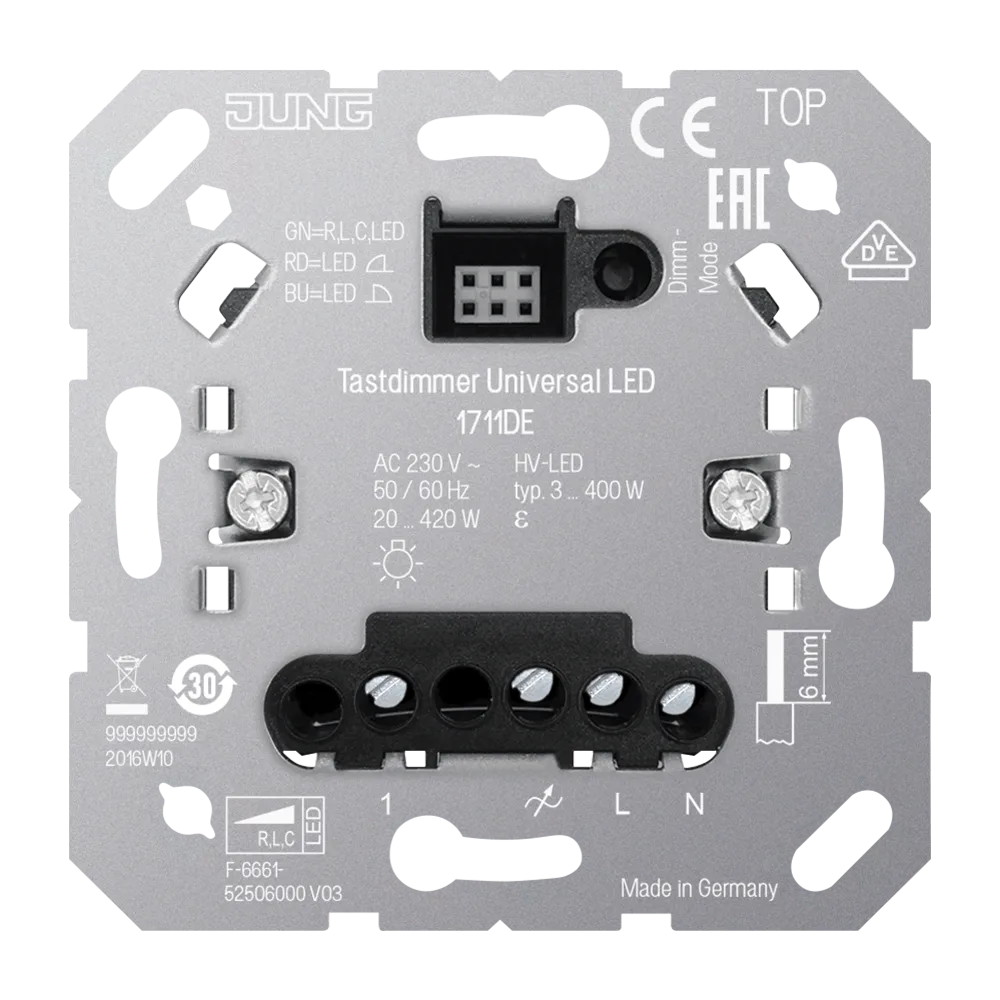

Name: Universal touch dimmer insert LED
Brand: JUNG
SKU: 1711DE
Price: 143500 KZT
Availability: BackOrder

Description & specifications

Universal touch dimmer insert LED with satellite input BT .. 17182 .., BT 17361 ..

Intended use

Product characteristics

Switching and dimming of lighting
Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073
Device works according to the leading edge phase control or trailing edge phase control principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode by means of LED
Device can be operated without neutral conductor
Switch-on via bulb-preserving soft start
Switch-on with last brightness or saved switch-on brightness
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Maximum brightness can be saved permanently
Connection of satellite units possible
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Test operation for functional test
Key card function
Power extension possible by means of amplifiers (ref.-no. ULZ 1755 REG)

Tutorial operating instructions

Rated voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Stand-by power depending on the cover: approx. 0.1 ... 0.5 W
Power loss: approx. 4 W
Ambient temperature: −5 ... +45 °C Connected load at 25 °C
Incandescent lamps: 20 ... 420 W
HV halogen lamps: 20 ... 420 W
Electronic transformers: 20 ... 420 W
Electronic transformers with LV LED: typical 20 ... 100 W
Inductive transformers: 20 ... 420 VA
Inductive transformers with LV LED: typical 20 ... 100 VA
Dimmable HV LED lamps: typical 3 ... 100 W
Dimmable compact fluorescent lamps: typical 3 ... 100 W Operating mode LED trailing edge phase control: Rated power for HV LED lamps, typ. 3 ... 400 W, electronic transformers with LV LED typ. 20 ... 200 W.
Ohmic-capacitive: 20 ... 420 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 420 VA
Ohmic and HV LED: typical 3 ... 100 W
Ohmic and CFL: typical 3 ... 100 W
Amplifiers: see instructions for amplifier Connection screw terminals
single wire: 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm²
stranded without ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 2.5 mm²
stranded with ferrule: 1 x 0.5 ... 4.0 mm²2 x 0.5 ... 1.5 mm² Number of satellite units
Satellite insert 2-wire 1720 NE: unlimited
Satellite insert 3-wire 1723 NE: 10
Rotary satellite insert 3-wire 1733 DNE: 10
Push-buttons: unlimited
Total length of satellite cable: max. 100 m
Total length power cable: max. 100 m
