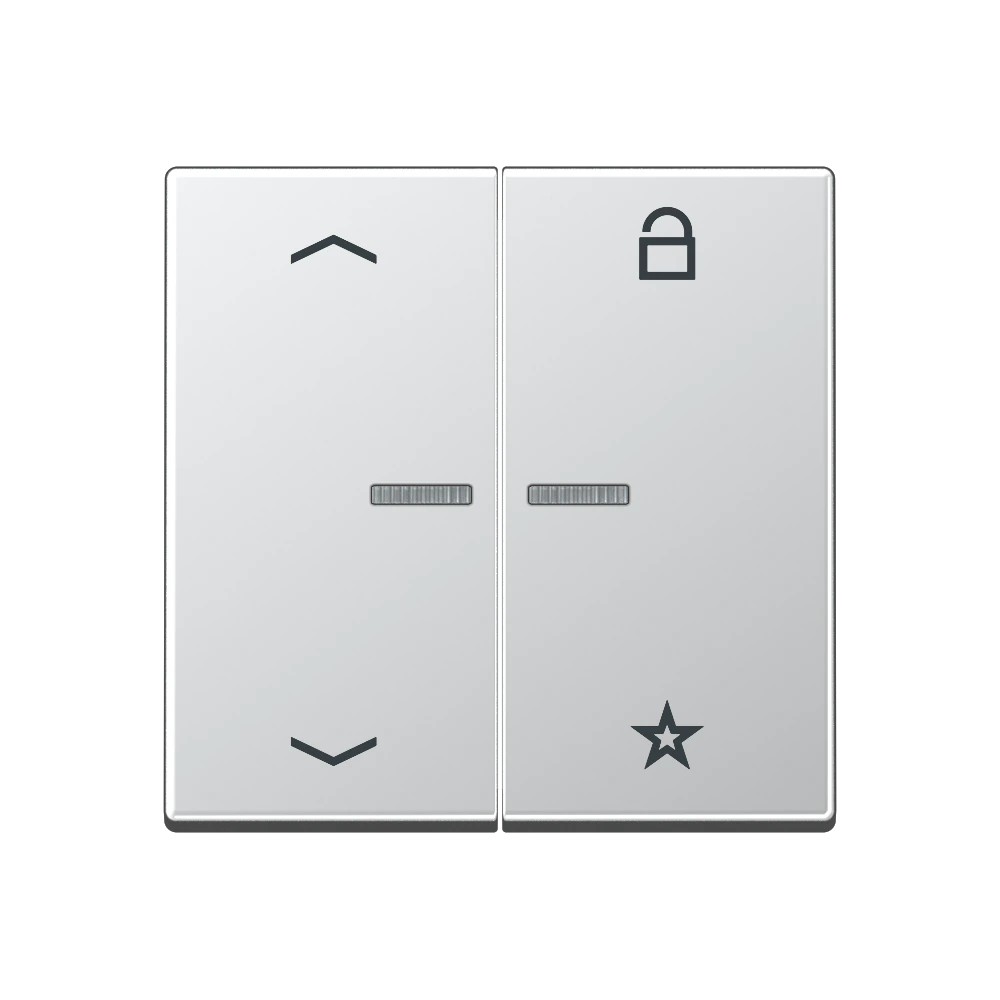

eNet push-button universal 1-gang with arrow symbols

eNet push-button universal 1-gang with arrow symbols 1713 DSTE, 1723 NE

Intended use

Product characteristics

Can be set with eNet server from version 2.2 (depending on insert):

• Manual, radio-controlled and time-controlled operation of e.g. blinds, shutters, awnings, lighting or fans
• Transmitter for radio communication of switching, dimming and blind commands
• Operation with system insert for switching, dimming, blind or satellite insert 3-wire
• 2 switching times can be saved, which are repeated in a 24-hour cycle
• Disabling function
• Status feedback to radio transmitter
• Status indication with LED
• Night mode
• Evaluation of the satellite inputs (if present) for controlling the system insert
• Positioning of blinds, shutters and awnings via scene request
• Position for sun protection and twilight
• Running time and ventilation position of the blind/shutter can be saved
• Scene operation possible
• Switch-on brightness can be saved permanently when combined with flush-mounted inserts for dimming
• Output a2 switches depending on output a1 e.g. to switch on ventilation, depending on the lighting, and switch it off with a delay.
• Switch-on delay of output a2 adjustable
• Switch-off delay of output a2 adjustable
• Repeater function
• Slat change-over time / fabric-stretching time
• Change-over time for direction change
• Running direction invertible
• Operating locks
• Deactivating extension evaluation
• Position for sun protection, twilight, lock-out protection and wind alarm
• Maximum brightness
• Minimum brightness
• Dimming speed
• Switch-on delay / switch-off delay
• Dim up/dim down ramp
• Switch-off warning
• Continuous on, Continuous off
• Hotel function
• Run-on time
• Light control

• Fully-encrypted radio transmission (AES-CCM)
• Update of the device software
• Reading of error memory

Duroplastic lacquered
