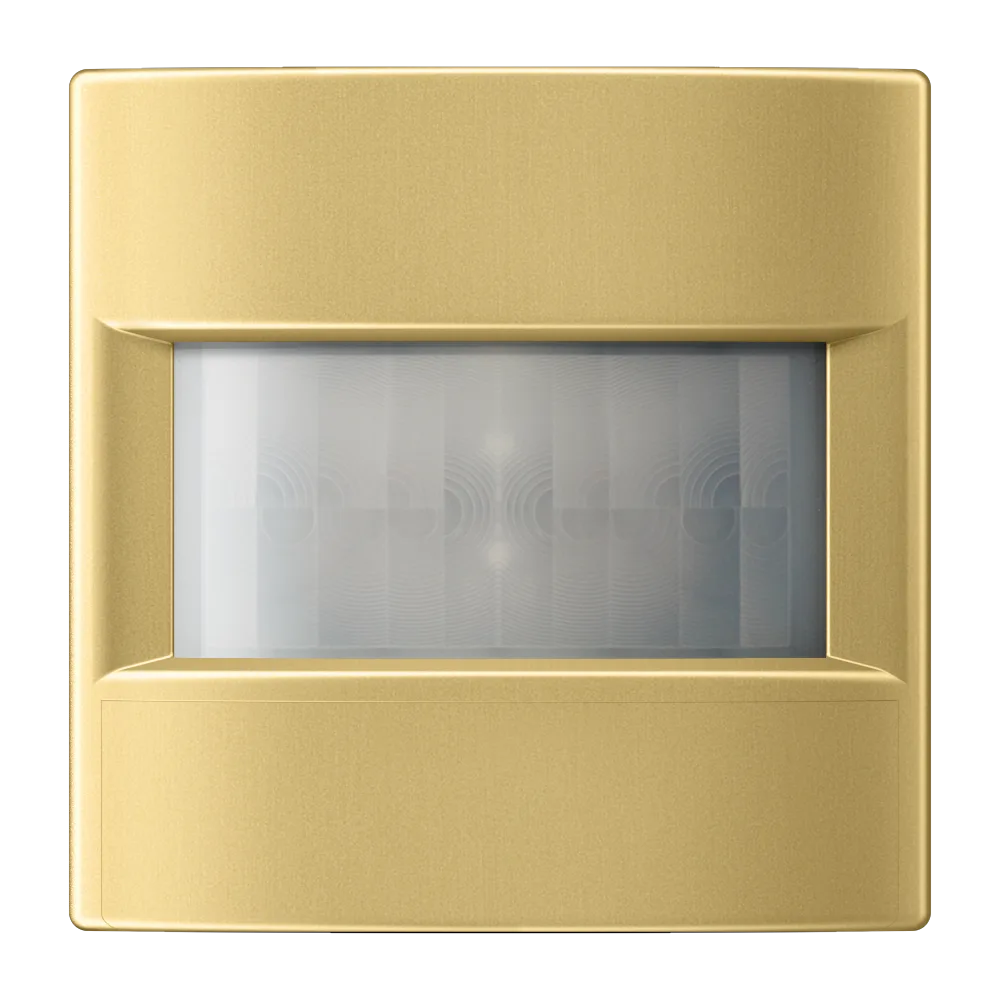

LB Management motion detector 1.1 m
Retail Price
167,175 ₸
Made to order from Germany
Characteristics
- Colour
- classic brass
- Material
- brass
Description & specifications
LB Management motion detector 1.1 m Sensitivity and brightness threshold adjustable 1713 DSTE, 1723 NE, 1708 IE IP44 suitable only for interiors
Intended use
Product characteristics
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Wall installation on system insert
- Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
- Dimming light via satellite unit, with dimmer insert
- Screen for limiting the detection area
- Fixed run-on time
- Sensitivity selectable
- Brightness threshold adjustable
Technical data
- Ambient temperature
- −20 ... +45 °C
- Storage/transport temperature
- −25 ... +70 °C
- Brightness setting
- approx. 5 ... 1,000 lx (and daytime operation)
- Sensitivity
- 25, 50, 75, 100 %
- Run-on time
- approx. 2 min
- Mounting height
- 1.10 m
- Detection angle
- 180° Detection range
- Sensitivity 25 %
- max. 8 m
- Sensitivity 50 %
- max. 13 m
- Sensitivity 75 %
- max. 26 m
- Sensitivity 100 %
- max. 32 m metal colours (thermoplastic lacquered)
- Colour
- classic brass
