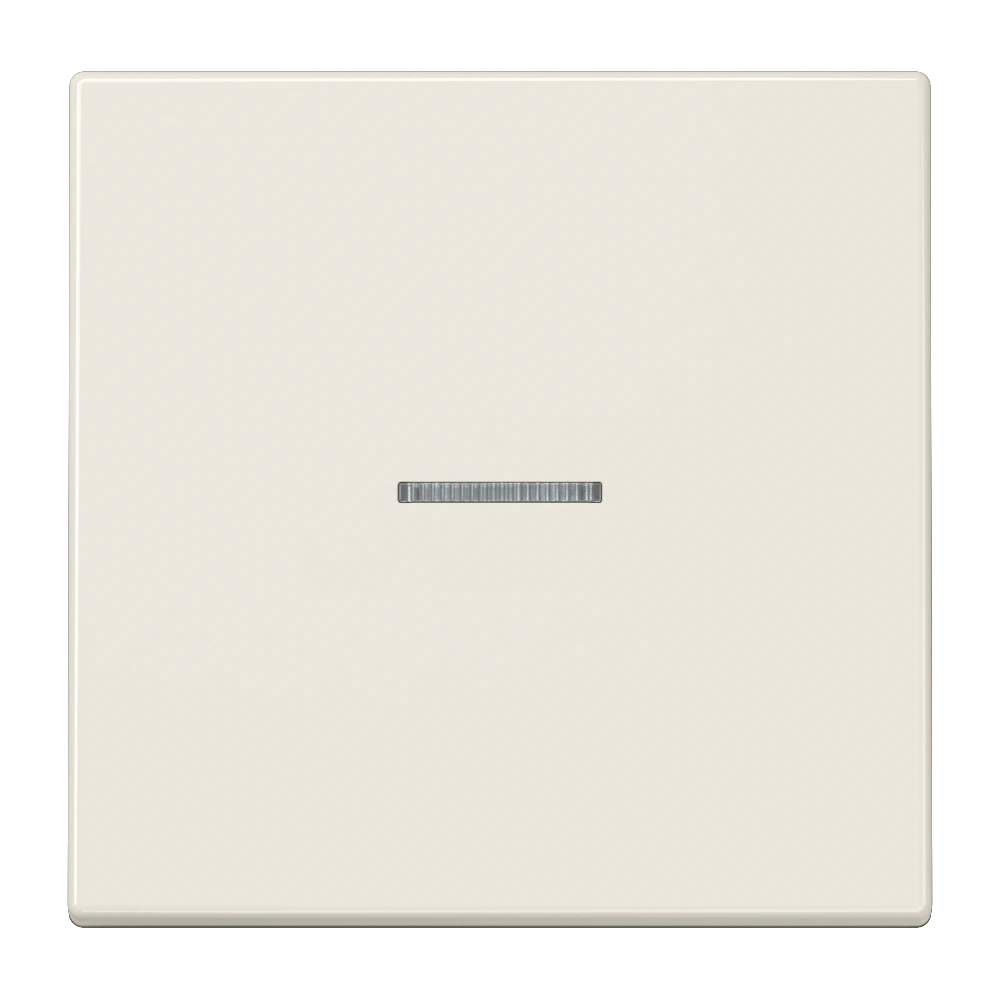

KNX RF push-button 1-gang

KNX RF push-button 1-gang 1712 DE, 1713 DSTE, 1723 NE

Intended use

Venetian blinds up/down, value transmitter 1 byte, 2 bytes, 3 bytes and 6 bytes,

Product characteristics

• Operation of loads, e.g. light on/off, dimming of brightness and colour temperature, brightness values, temperatures, calling up and saving of light scenes
• Room temperature control
• Operation with system insert for switching, dimming, blinds, DALI, room temperature control or with satellite insert 3-wire
• Activation of Venetian blinds, shutters, awnings, with blinds insert
• Switching and dimming of lighting, with switch or dimmer insert
• Colour temperature control of lighting, with DALI push-button controller TW
• Room temperature control, with room thermostat insert
• Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
• Push-button functions adjustable: switching, dimming, blinds, value transmitter, scene extension, 2-channel operation and controller extension
• Operating concept (rocker or button) adjustable for each operating area
• Button evaluation (single-area operation or dual-area operation) adjustable
• One or two functions per operating area
• Controller extension with adjustable operating mode selection, forced operating mode switch over, presence function and setpoint adjustment
• Status LED – red, green or blue – adjustable per rocker
• LED functions orientation light and night reduction can be set separately
• Brightness of LED adjustable and switchable while in operation
• Disabling function: Disabling or change function mode of single or all button functions
• Internal sensor for temperature measurement, can only be used with the following

1790 RTR, 1723 NE

• Improved temperature measurement by including external temperature values via communication object
• Commissioning with ETS version 5.7.5 or higher
• KNX Data Secure compatible with ETS 5.7.5 or higher
• Can be updated with the ETS Service App jung.group/gt

A labelling request in the GRAPHIC TOOL must be submitted together with the order: Subsequent labelling of the buttons is not possible.
